Basic Info
Product Description
Item No:KW-800-AQS200
Size: 28000*1000*4000mm

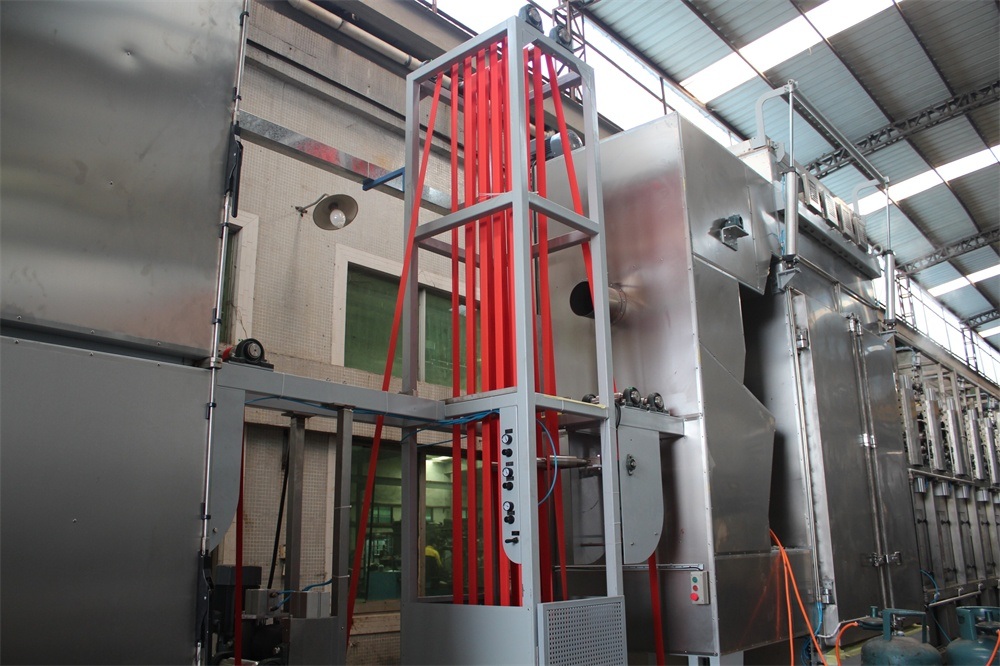

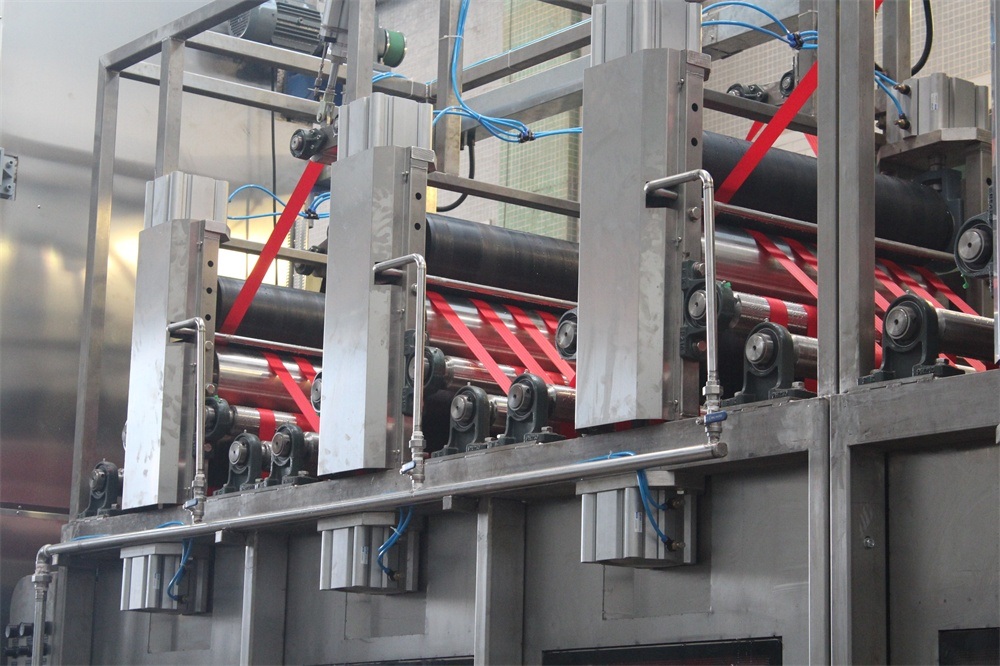

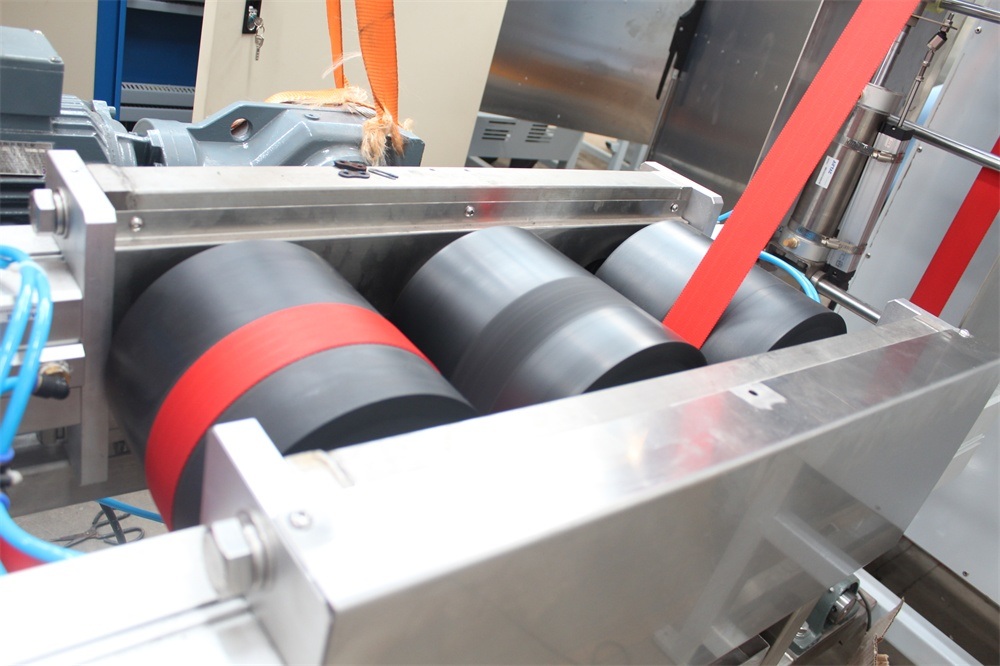

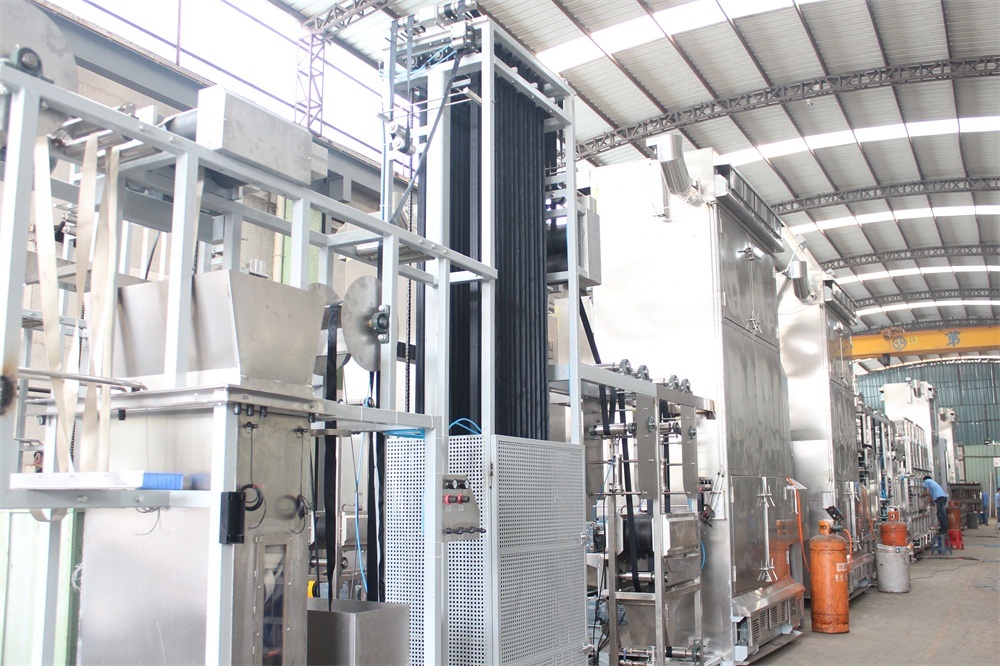

This is high speed safety webbings/harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons etc.
Features:
1) High efficiency
2) With washing tanks for good color fasteness
3) Our patents.
4)Application: The dyeing machine is especially used for
harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons satin ribbons with thickness below 1.5mm
Heat System electrical/LPG or natural gas/steam
Working Width(mm) 200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m) 15/30/40
Maximun Number(m) 6/10/20
Control system Manual/Computer control(PLC&Touch screen)
Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off
Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.
KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
