2017 Latest Design Films Screen Printing Machine - High Temp Polyester Ribbons Dyeing&Finishing Machine – Kin Wah

Item No:KW-812-400
Size:    25000*1000*2400mm

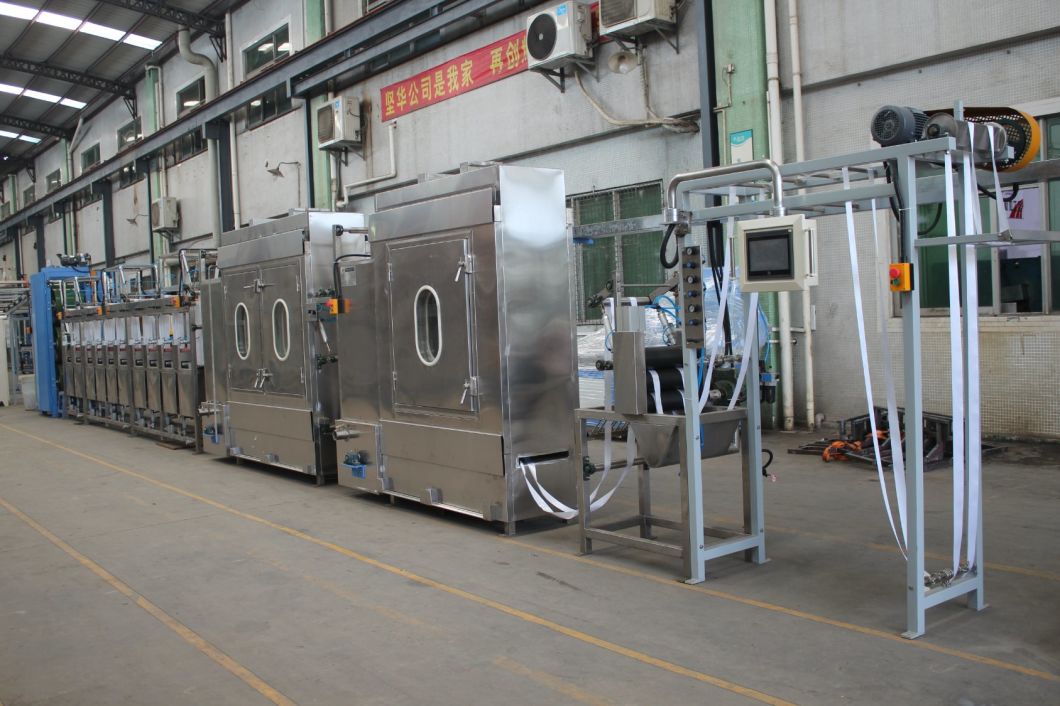

This is high speed satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.

Features:
1) High efficiency
2) Power Energy Saving
3) Our patents.

4)Application: The dyeing machine is especially used for dyeing polyester satin ribbons,label ribbons made from nylon,polyester with thickness below 1.2mm.

5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

Heat System       electrical/LPG or natural gas/steam
Working Width(mm)  200/400/600
Thermofixation Chamber Tape Content(m) 45/60/80/90
Maximun Speed(m)   15/30/40
Maximun Number(m)  6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

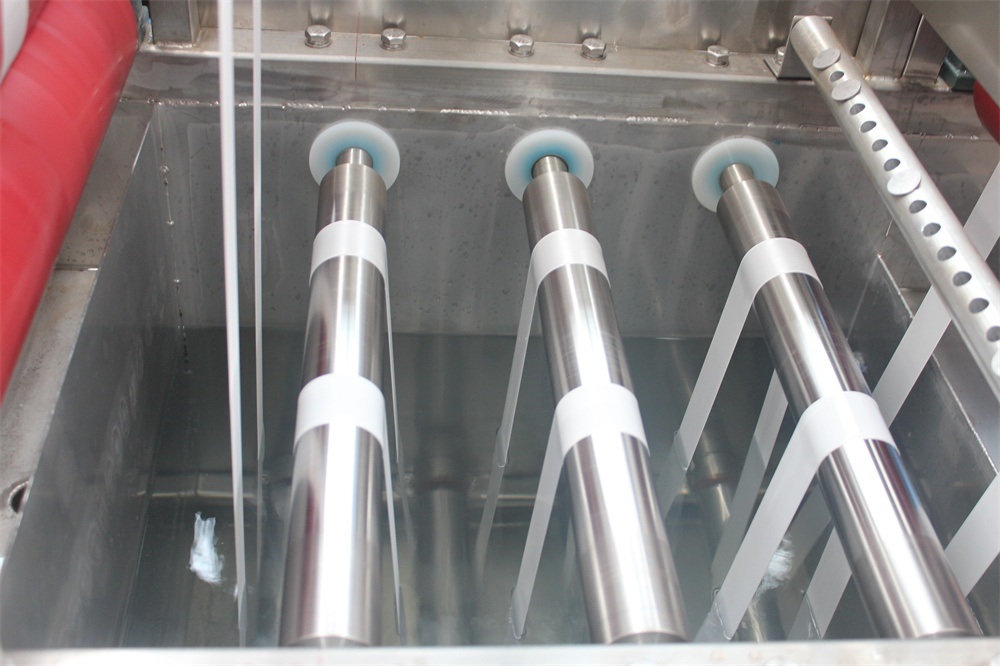

Processes: Feed in-Pre washing-Pre dryer-dyeing groove-Infrared pre drying-thermofixation-washing tank-chemical groove-drying&finishing unit-cooling system-take off

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.
