Basic Info
Product Description
Item No:KW-807-SJ400-A
Size:15000*2400*1000mm

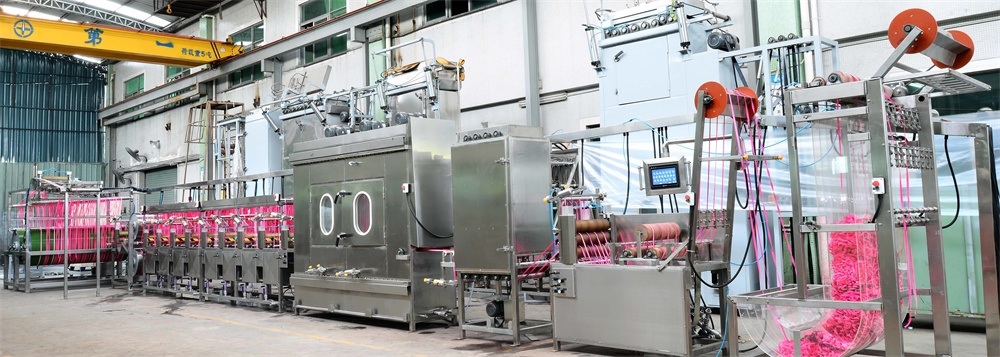

This is updated newest elastic tapes continuous dyeing machine
Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it’s the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.
| Item | |||
| Heat System | electrical | steam | |
| Working Width(mm) | 200 | 400 | 600 |
| Thermofixation Chamber Tape Content(m) | 45/60 | 80/90 | |
| Maximun Speed(m) | 15 | 20 | 30 |
| Maximun Number(m) | 4 | 8 | 12 |
| Control system | Manual/PLC |

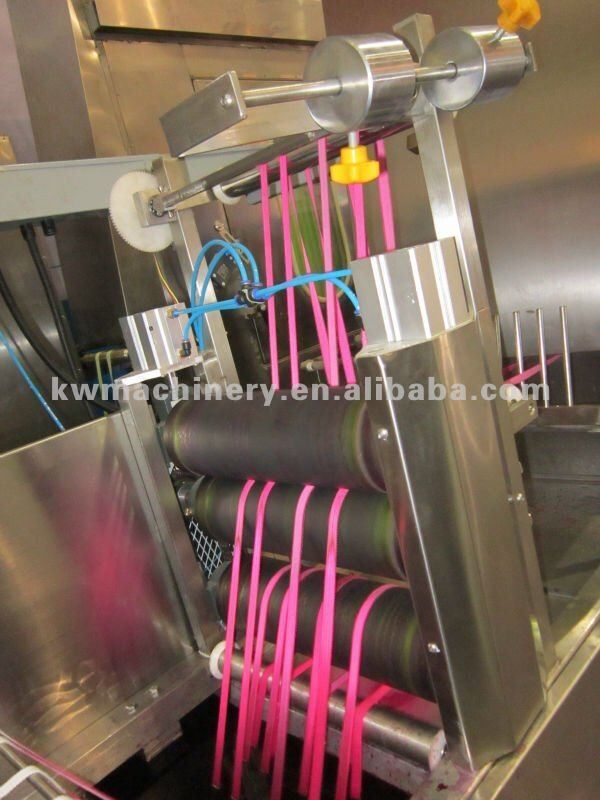

Option: J-Box Feed in device with individual tapes tension control

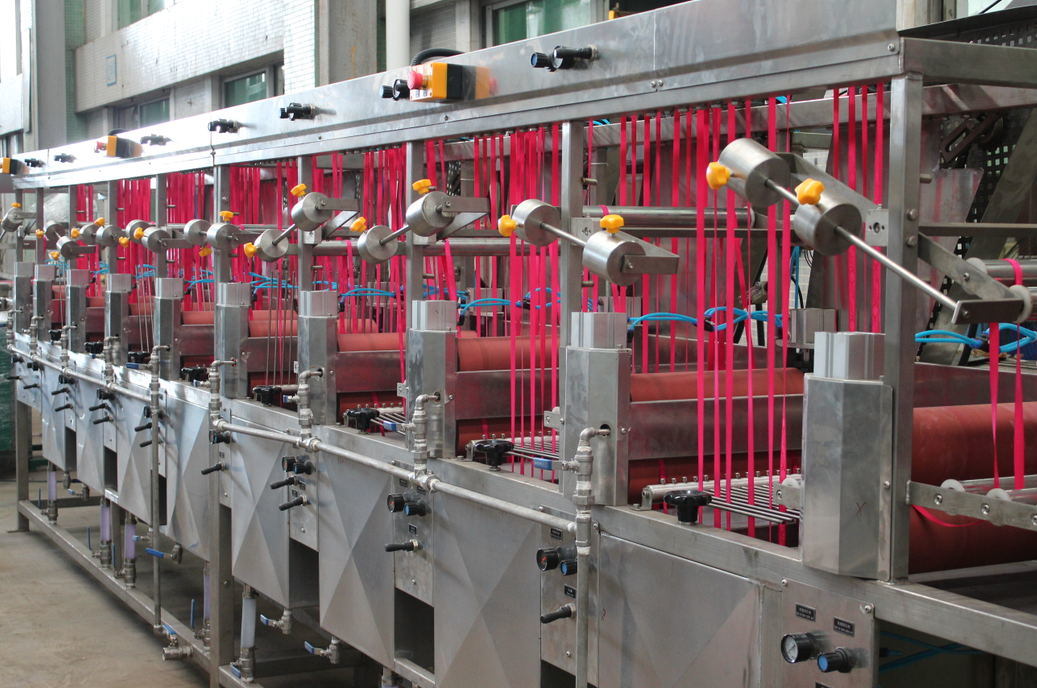

Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off
Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.
Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.
KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
Packaging Details:Covered by plastic membrane within full container or less container (woodencase)
