    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine - High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah

    Short Description:

    Basic Info Model NO.: Kw-812-400 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Driven Type: Electric ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We're going to commit ourselves to giving our esteemed customers along with the most enthusiastically considerate providers for Woven Labels Starching And Finishing Machine , Care Labels Automatic Screen Printing Machine , Care Labels Screen Printing Machine , "Quality", "honesty" and "service" is our principle. Our loyalty and commitments remain respectfully at your service. Contact Us Today For further information, contact us now.
    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine - High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah Detail:

    Basic Info

    Model NO.: Kw-812-400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Driven Type: Electric
    Frequency: 50/60Hz
    Phase: 3 Phases
    Power(W): 55kw
    Dimension(L*W*H): 18000mm * 1000mm* 4000mm
    Weight: 8000kg
    Max Speed: 40m/Min
    Pre-Drying Type: Infrared
    Drying Type: Hot Air
    Trademark: KINWAH
    Transport Package: Wooden Box
    Specification: certification
    Origin: Dongguan, Guangdong
    HS Code: 84514000

    Product Description

    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400

    Item No:KW-812-400
    Size:    25000*1000*2400mm
    This is high speed satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.

    Features:
    1) High efficiency
    2) Power Energy Saving
    3) Our patents.

    4)Application: The dyeing machine is especially used for dyeing polyester satin ribbons,label ribbons made from nylon,polyester with thickness below 1.2mm.

    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Heat System       electrical/LPG or natural gas/steam
    Working Width(mm)  200/400/600
    Thermofixation Chamber Tape Content(m) 45/60/80/90
    Maximun Speed(m)   15/30/40
    Maximun Number(m)  6/10/20
    Control system        Manual/Computer control(PLC&Touch screen)
    Processes: Feed in-Pre washing-Pre dryer-dyeing groove-Infrared pre drying-thermofixation-washing tank-chemical groove-drying&finishing unit-cooling system-take off

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.

    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400
    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400
    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400
    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400
    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400
    High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400

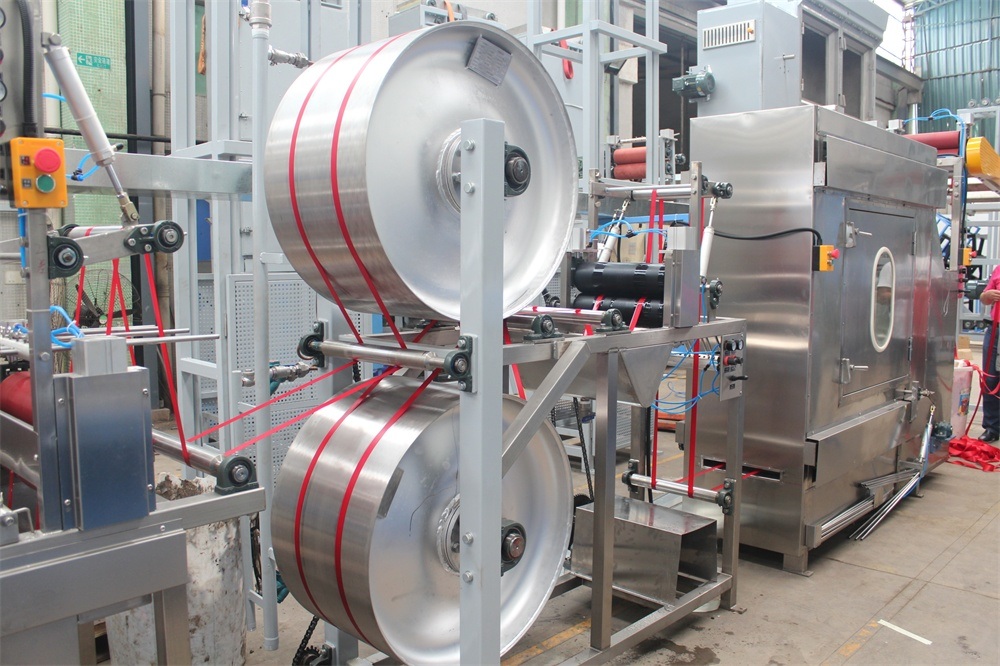

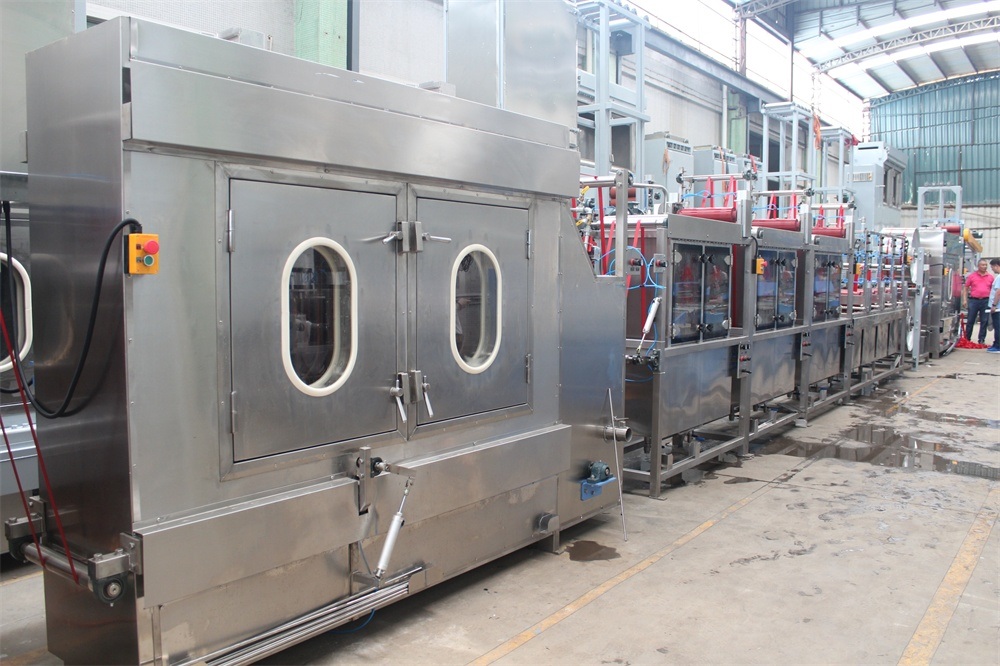

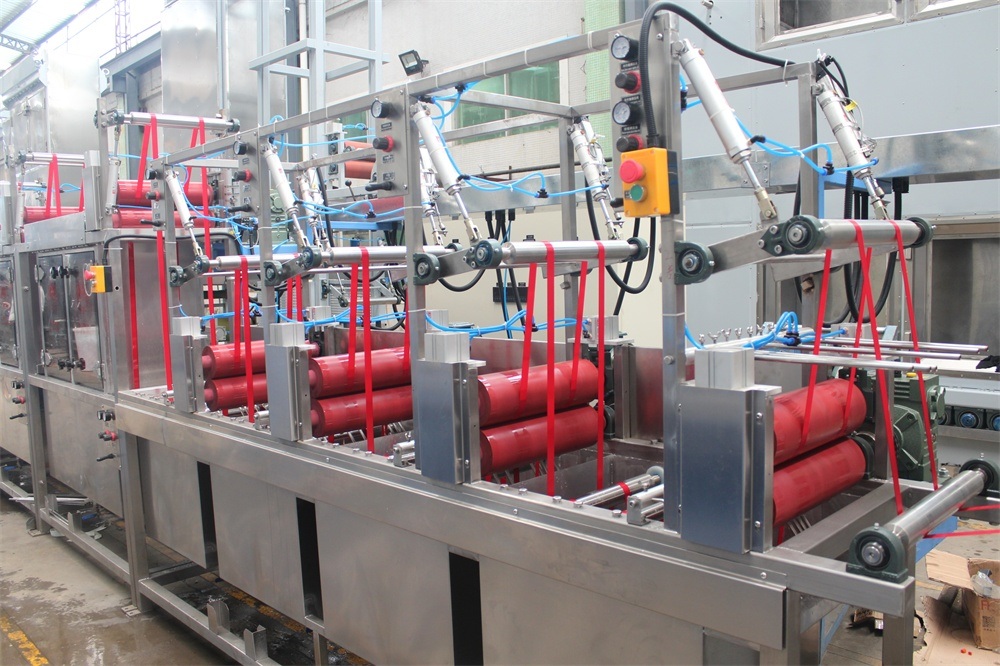

    Product detail pictures:

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures

    China Manufacturer for Satin Ribbons Sample Continuous Dyeing Machine -
 High Speed Polyester Ribbons Dyeing&Finishing Machine Kw-812-400 – Kin Wah detail pictures
