China Supplier Socks Screen Printing Machine - High Temp Ink Automatic Screen Printing Machine with 200mm Width Ts-200 – Kin Wah

Short Description:

Basic Info Model NO.: TS-200 Model No.: Ts-150 Driven Type: Electric Frequency: 50/60Hz Power: 6-11kw Max Speed: 6m/Min/Line Printing Area: 150*300mm ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Our primary intention should be to offer our clientele a serious and responsible enterprise relationship, delivering personalized attention to all of them for Content Labels Screen Printing Machine , Layer Loose Tapes Packing Machine , Nylon Elastic Laces Automatic Silicone Coating Machine , We glance forward to receiving your enquires shortly and hope to have the opportunity to function along with you inside the future. Welcome to acquire a glimpse at our organization.

China Supplier Socks Screen Printing Machine - High Temp Ink Automatic Screen Printing Machine with 200mm Width Ts-200 – Kin Wah Detail:

Basic Info

Model NO.: TS-200

Model No.: Ts-150

Driven Type: Electric

Frequency: 50/60Hz

Power: 6-11kw

Max Speed: 6m/Min/Line

Printing Area: 150*300mm

Registration Precision: 0.05mm

Net Weight: 400-150kgs

Printing Side: Single/Double Sides

Trademark: DOPSING

Transport Package: Wooden Box

Specification: CE certification

Origin: China

HS Code: 8443192290

Product Description

High Temp ink automatic Screen Printing Machine with 200mm width TS-200

We supply Auto Roll to Roll Screen printing Printer, all are for fabric label and ribbon screen printing. It can print priciesly and two sides printing at one time. It’s the leader of the narrow fabric screen printing equipments. We have agents in many countries and branches in China.
Model No. TS-150
Usage, print any kinds of roll material, such as label, ribbon, cotton, elestic, shoelace, heavy tape, lanyard and so on

Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
2 C	1+1	Both	3Lines/3.5cm	150X300mm	2200X850X1600mm
2 C	2+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
3 C	2+1	Both	3Lines/3.5cm	150X300mm	2700X850X1600mm
3 C	3+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
4 C	3+1	Both	3Lines/3.5cm	150X300mm	3850X850X1600mm
4 C	4+0	Single	3Lines/3.5cm	150X300mm	4760X850X1600mm

Advantage:
1. Using Stainless steel convey belt instead of traditional convey to make register color very precisely.
2. Standard colour: 2+1 (front side 2 -colours, back side 1 colour printing), this model we can customise as the requirement of our client.
3. Small in size, and not occupy your much room, dimention only 2.95M * 0.65M * 1.65M. Easy to install at any place.
4. Full automatic, it is controlled by a servo-system. Two infrared ovens.
5. High efficiency, save your time and your labour cost. Max Speed can up to 28 Times/Min.
6. Good thermostability with stainless steel belt convey, it can print any kinds of high temperature ink, such as plastisol, silicon, etc.
7. Multi tapes printed at one time.
8. Rational Price depend on how many colours do you want to print.
9. Long service life, if maintainance proper, its service life can up to more than 8 years.

DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.
High Temp Ink Automatic Screen Printing Machine with 200mm Width Ts-200

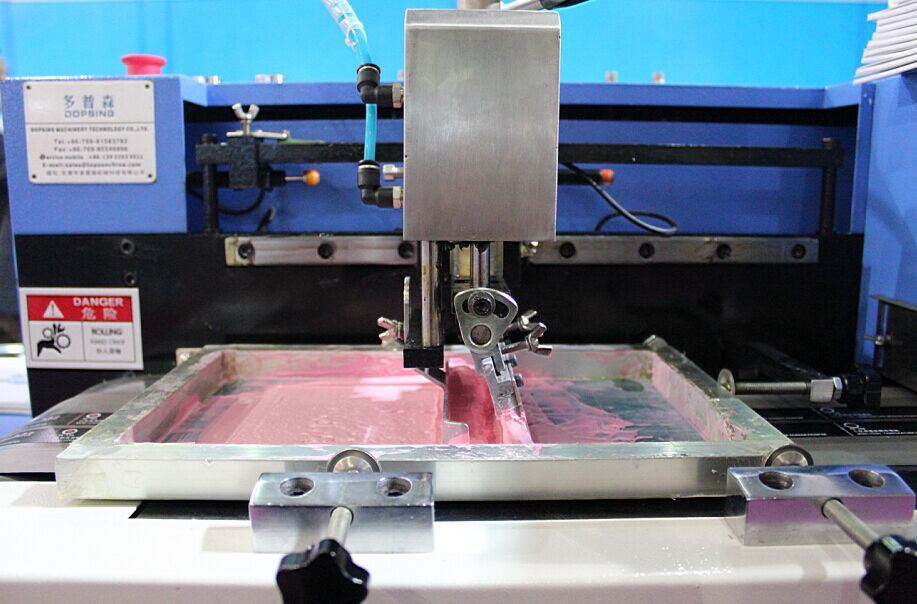

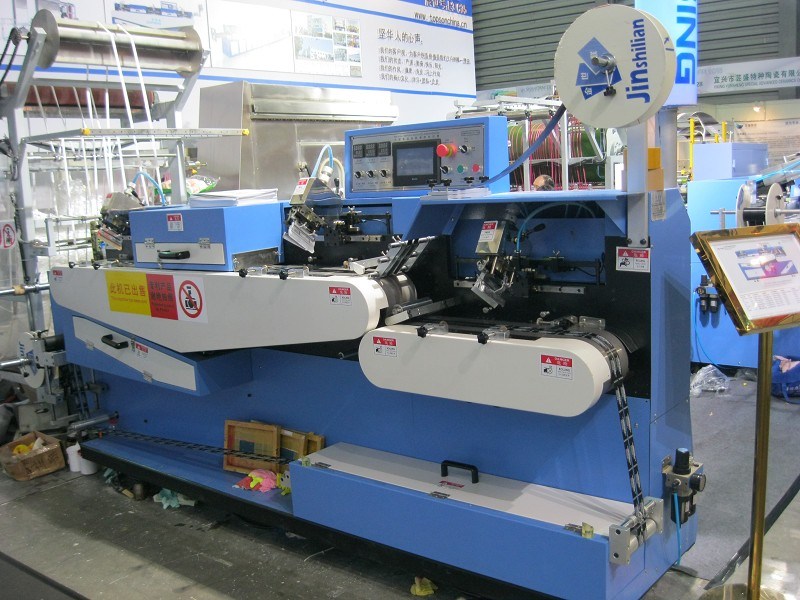

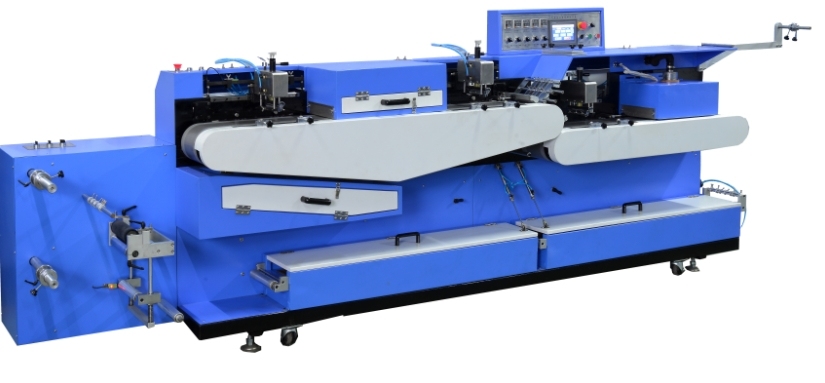

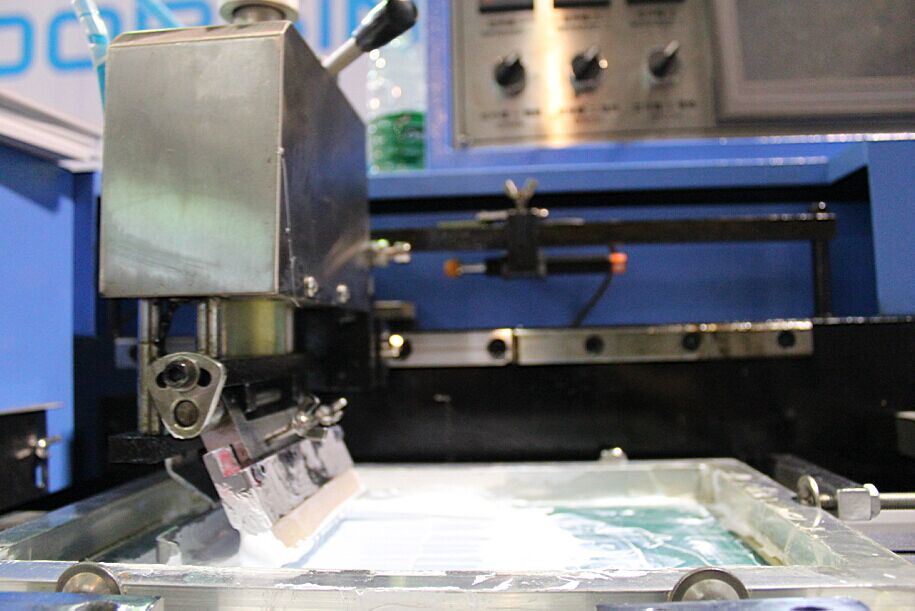

Product detail pictures:

We have our own product sales staff, style crew, technical group, QC staff and package staff. We now have strict high quality management procedures for each approach. Also, all of our workers are experienced in printing subject for China Supplier Socks Screen Printing Machine - High Temp Ink Automatic Screen Printing Machine with 200mm Width Ts-200 – Kin Wah, The product will supply to all over the world, such as: Georgia , Kuwait , Singapore , As operation principle is "be market-oriented , good faith as principle, win-win as objective", holding on "customer first, quality assurance, service first" as our purpose, dedicated to provide the original quality, create excellence service , we won the praise and trust in the industry of auto parts. In the future, We will provide quality product and excellent service in return to our customers , welcome any suggestions and feedback from all over the world.
