Cotton Tapes Automatic Screen Printing Machine

Short Description:

Basic Info Model NO.: TS-200 Materials: Stainless Steel Condition: New Driven Type: Electric Phase: 3 Phases Frequency: 50/60Hz Max Speed: 6 M/Min/Line Printing Linest: 3 Lines/ Time Max. Printing Area: 150*300mm Registration Precision: 0.05mm Application: Labels Ribbon, Satin Ribbon,Narrow Fabric Tapes Trademark: Dopsing Transport Package: Wooden Box Specification: CE certification Origin: Dongguan, Guangdong HS Code: 8443192290 Product Description Cotton Tapes Automatic Screen P...

Product Name: Disposable Face Mask

Product Feature: High Protect, Safe, Fit & Comfort

Product Implementation Standards: Q/Jlm 01-202

Carton Dimension: 455*385*435mm

Paper Box Size: 185*110*85mm

Mask Package: 40PCS/Paper Box

Box Packag: 50box/Carton, 2000PCS/Carton

Full Carton Weight: 8.89kg

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.: TS-200

Materials: Stainless Steel

Condition: New

Driven Type: Electric

Phase: 3 Phases

Frequency: 50/60Hz

Max Speed: 6 M/Min/Line

Printing Linest: 3 Lines/ Time

Max. Printing Area: 150*300mm

Registration Precision: 0.05mm

Application: Labels Ribbon, Satin Ribbon,Narrow Fabric Tapes

Trademark: Dopsing

Transport Package: Wooden Box

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 8443192290

Product Description

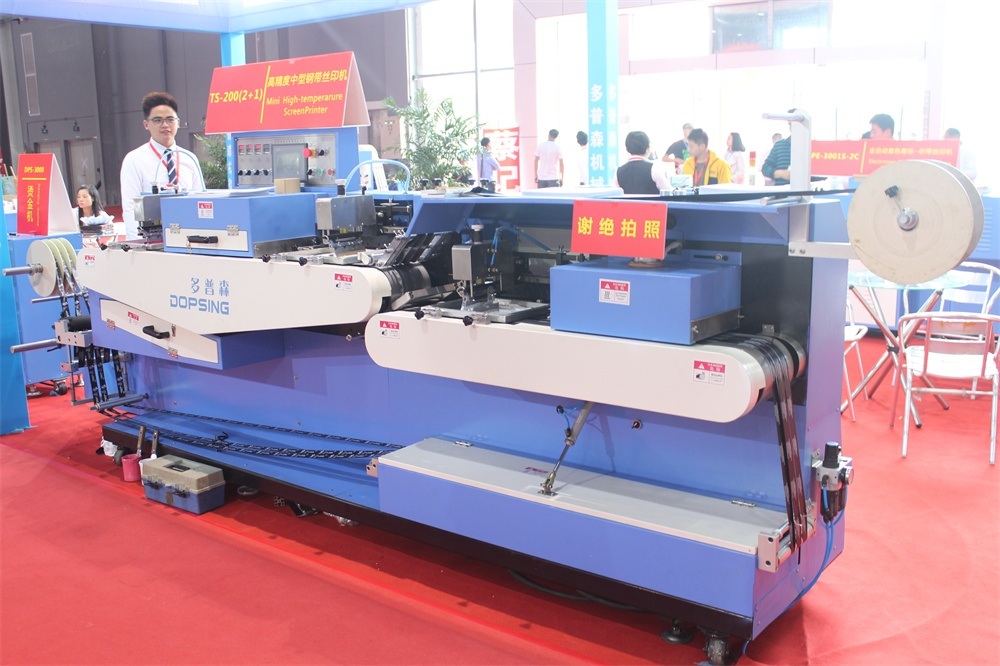

Cotton Tapes Automatic Screen Printing Machine

Specifications

TS-200, It’s high temperature mini- Automatic (electronic) label ribbon screen printing machine (it’s our patents)

Steel belt + Servo system

Multi-colore print 1C-5C

single side or doulbe side printing

came into the global market in 2010

it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.

Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
3 C	2+1	Both	3Lines/3.5cm	200X300mm	2700X850X1600mm
3 C	3+0	Single	3Lines/3.5cm	200X300mm	3155X850X1600mm
4 C	3+1	Both	3Lines/3.5cm	200X300mm	3850X850X1600mm
4 C	4+0	Single	3Lines/3.5cm	200X300mm	4760X850X1600mm

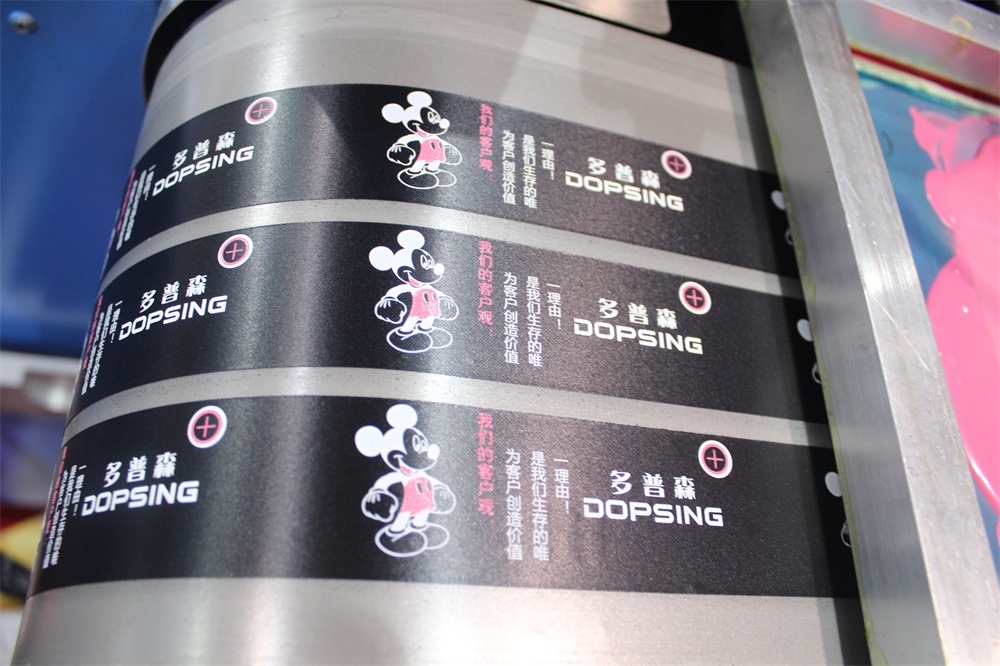

Precisely printing

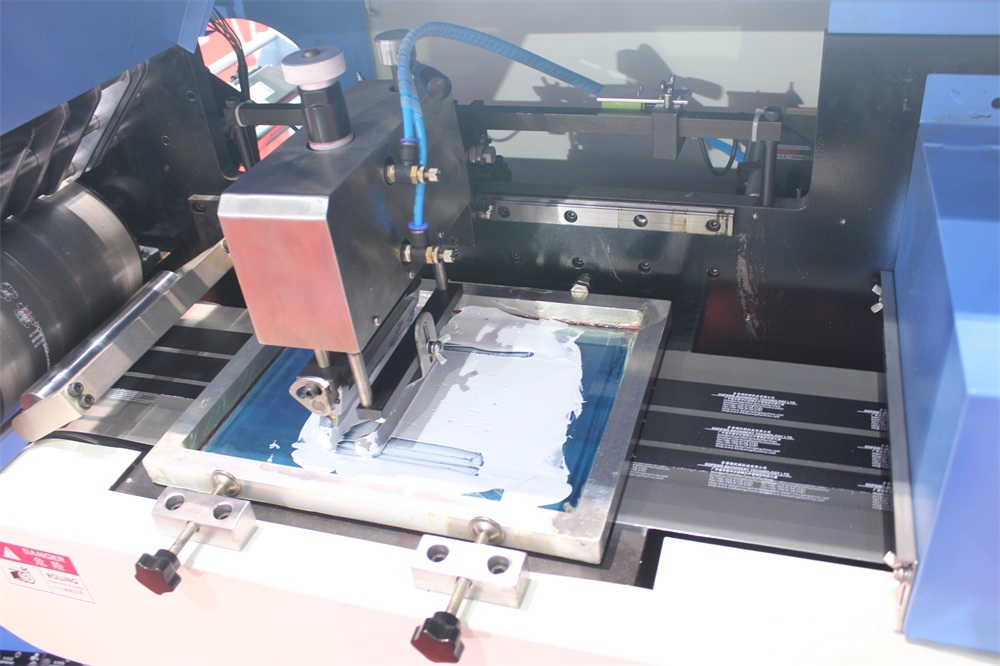

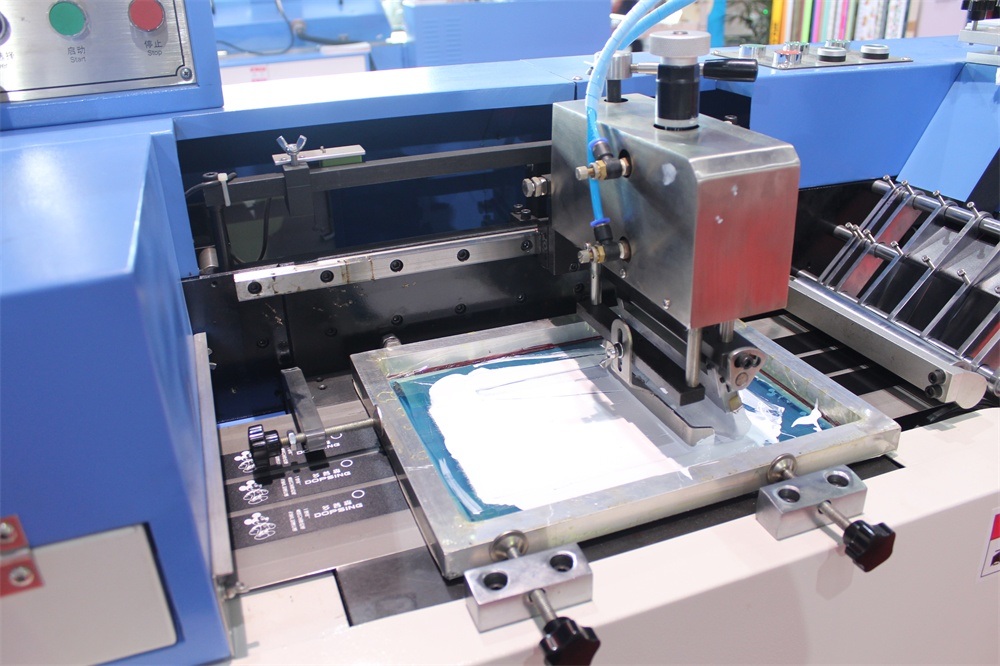

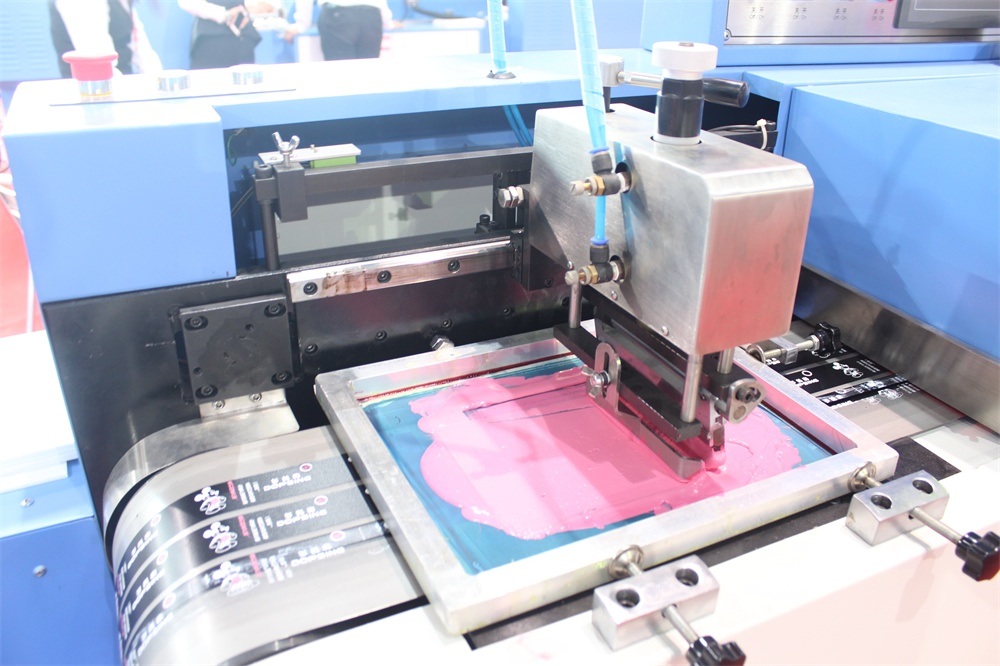

hight temperature ink printing

print any kinds of high temperature ink,such as plastisol,silicon,pomp ink

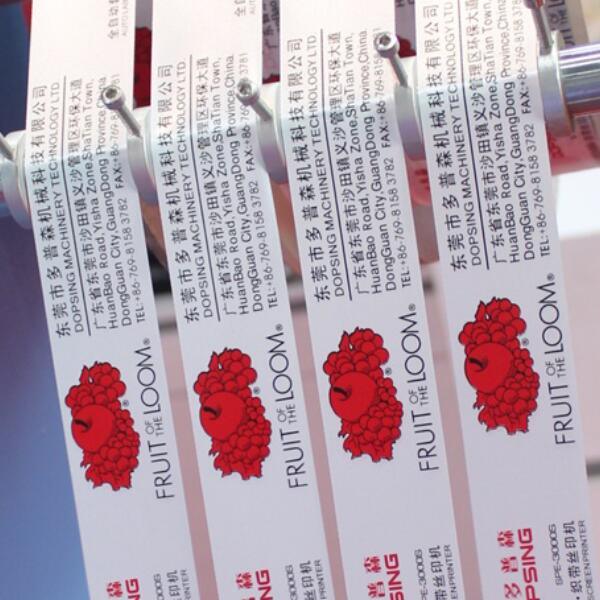

double side printing

precisely print multi-colores design,and multi-lines feeding.

operators

one operator need only

working situation

a workspace with 3 to 4 Square meters. you can move easily
DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.
