Basic Info
Model NO.: KW-807-SJ-400-A
Warranty: 1 Year
Customized: Customized
Condition: New
Machine Type: Dyeing&Finishing Machine
Driven Type: Electric
Power(W): 32kw
Phase: 3 Phases 50/60Hz
Working Linest: 1-8 Lines
Heating System: Electrical/Steam
Max Working Temperature: 180-220
Maximum Speed (M): 35-40 M/Min
Drying Type: Hot Air/Natural Gas Boiler
Application: Elastic Tapes,Polyester Tapes,Polyester Webbings
Trademark: KINWAH
Transport Package: Full Container or Less Container with Plastic Film
Specification: CE certification
Origin: Dongguan, Guangdong
HS Code: 894560000
Product Description

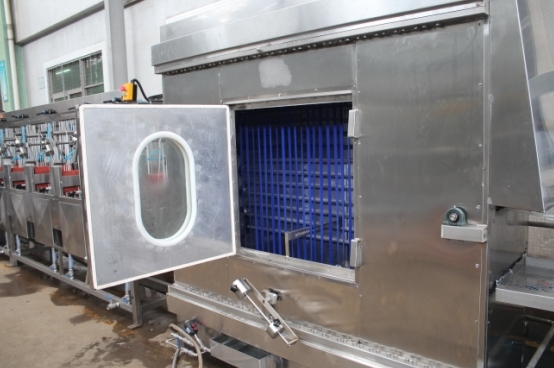

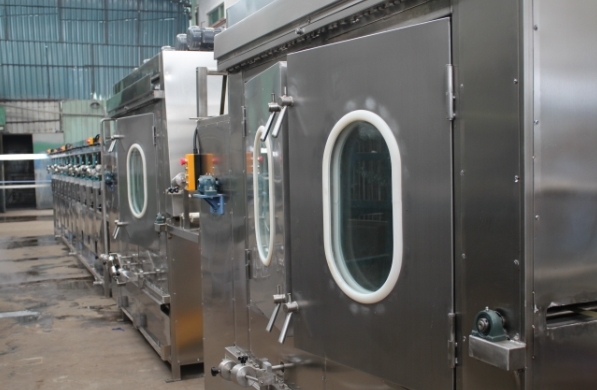

elastic tapes continuous dyeing&finishing machine 400mm
Item No:KW-806-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine
Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it’s the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.
| Item | |||
| Heat System | electrical | steam | |
| Working Width(mm) | 200 | 400 | 600 |
| Thermofixation Chamber Tape Content(m) | 45/60 | 80/90 | |
| Maximun Speed(m) | 15 | 20 | 30 |
| Maximun Number(m) | 4 | 8 | 12 |
| Control system | Manual/PLC |
Option: J-Box Feed in device with individual tapes tension control
Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off
Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.
-
