Elastic Webbings Automatic Screen Printing Machine (3+0)

Short Description:

Basic Info Model NO.: TS-150 Machine Type: Screen Printing Machine Driven Type: Electric Servo Moto Gross Power: 16-40kw Printing Area: 300mm*600mm Max Speed: 13m/Min /Line ...

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.: TS-150

Machine Type: Screen Printing Machine

Driven Type: Electric Servo Moto

Gross Power: 16-40kw

Printing Area: 300mm*600mm

Max Speed: 13m/Min /Line

Registration Precision: 0.05mm

Printing Side: Single Side

Dimensions(L*W*H): 7000*1200*1300mm

Weight: 2000kg

Application: Roll Materials,Cotton Tapes,Elastic Tapes,Label Ri

Trademark: DOPSING

Transport Package: Wooden Box

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 8443192290

Product Description

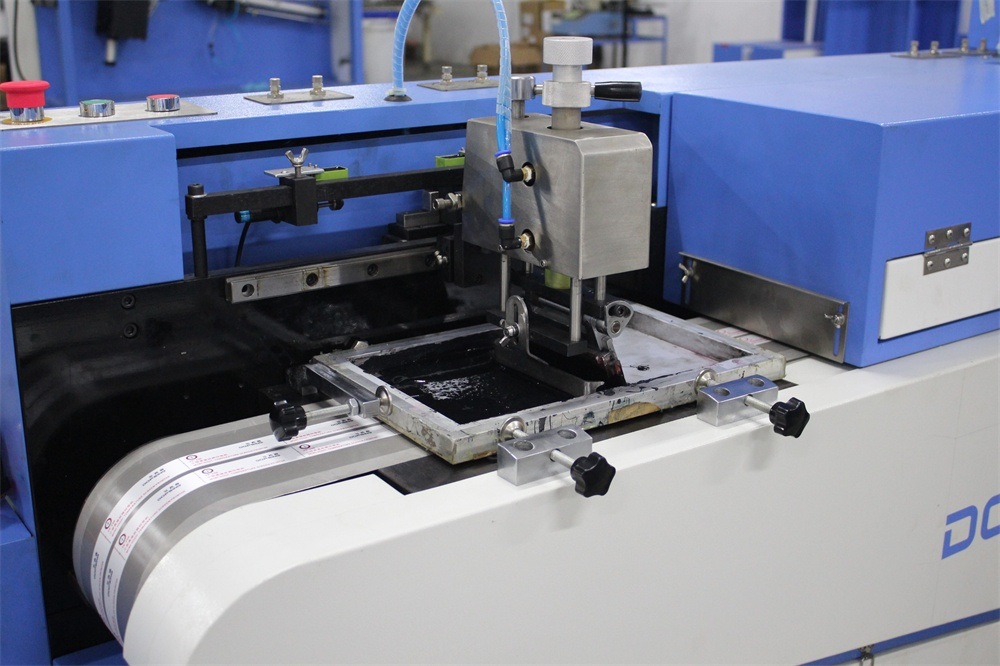

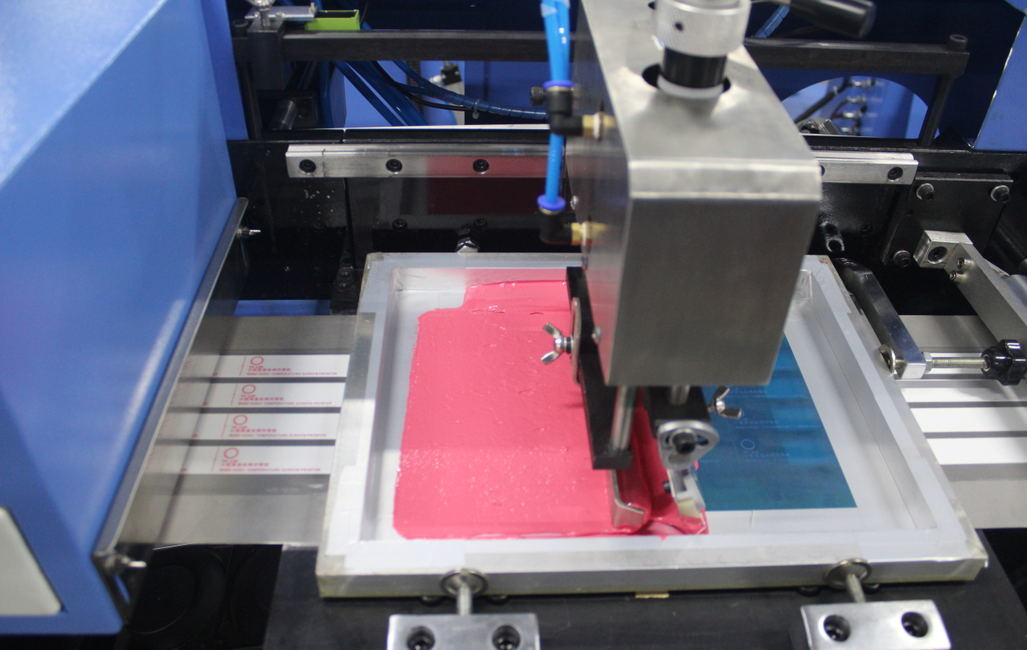

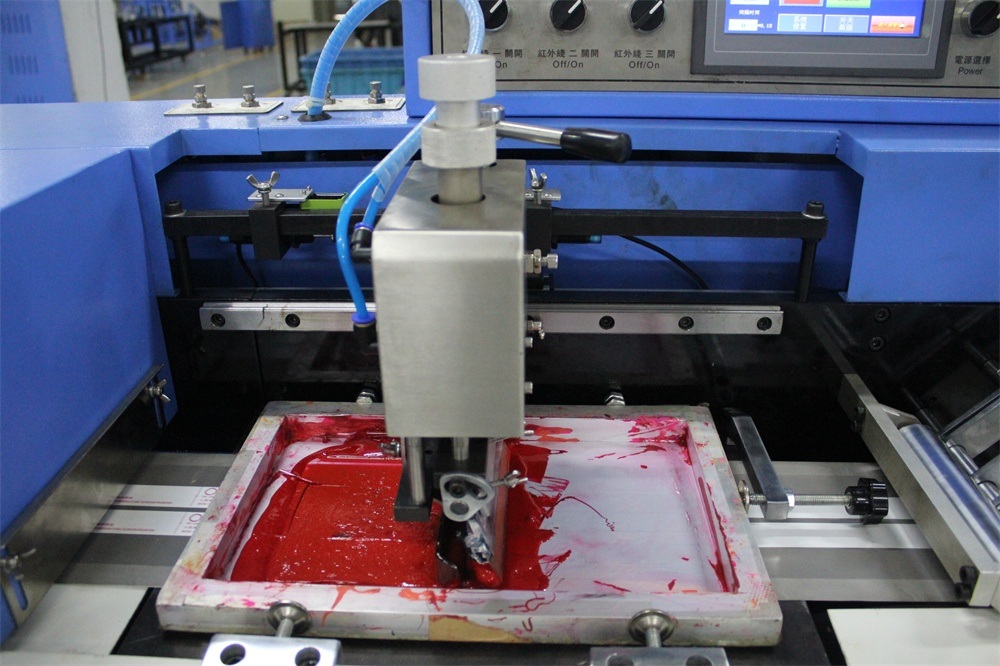

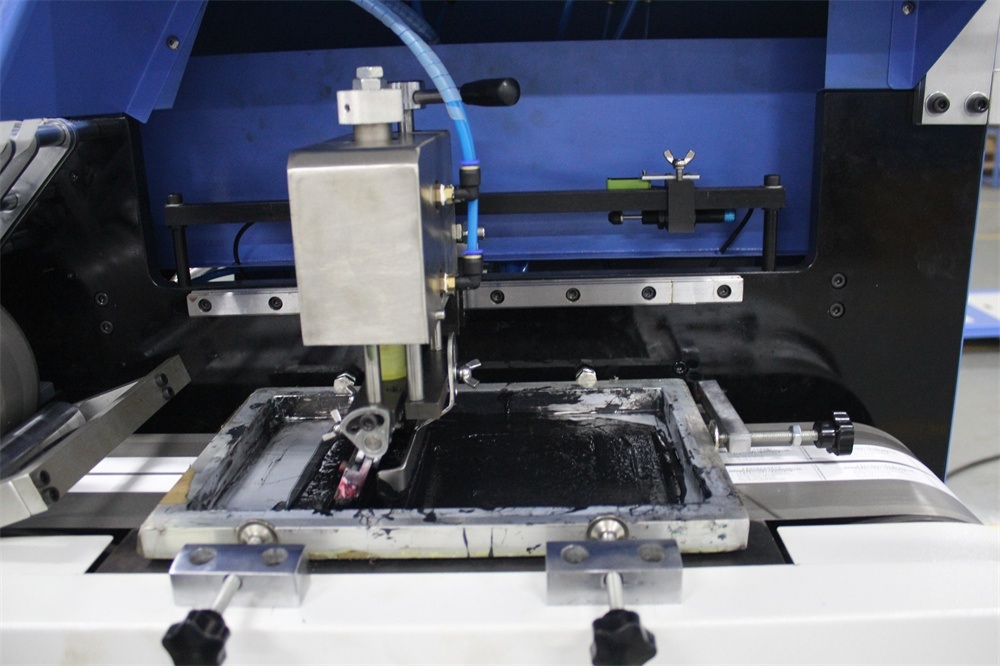

Elastic Webbings Automatic Screen Printing Machine(3+0)

Product Description
It’s a knid of MINI automatic label ribbon screen printing machine (It’s our patents)
hight temperature ink printing
print any kinds of high temperature ink,such as plastisol,silicon,pomp ink

double side printing
precisely print multi-colores design,and multi-lines feeding.
operators
one operator need only
working situation
a workspace with 3 to 4 Square meters. you can move easily

Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
2 C	1+1	Both	3Lines/3.5cm	150X300mm	2200X850X1600mm
2 C	2+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
3 C	2+1	Both	3Lines/3.5cm	150X300mm	2700X850X1600mm
3 C	3+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
4 C	3+1	Both	3Lines/3.5cm	150X300mm	3850X850X1600mm
4 C	4+0	Single	3Lines/3.5cm	150X300mm	4760X850X1600mm

Steel belt + Servo system
Multi-colore print 1C-5C
single side or doulbe side printing
came into the global market in 2010

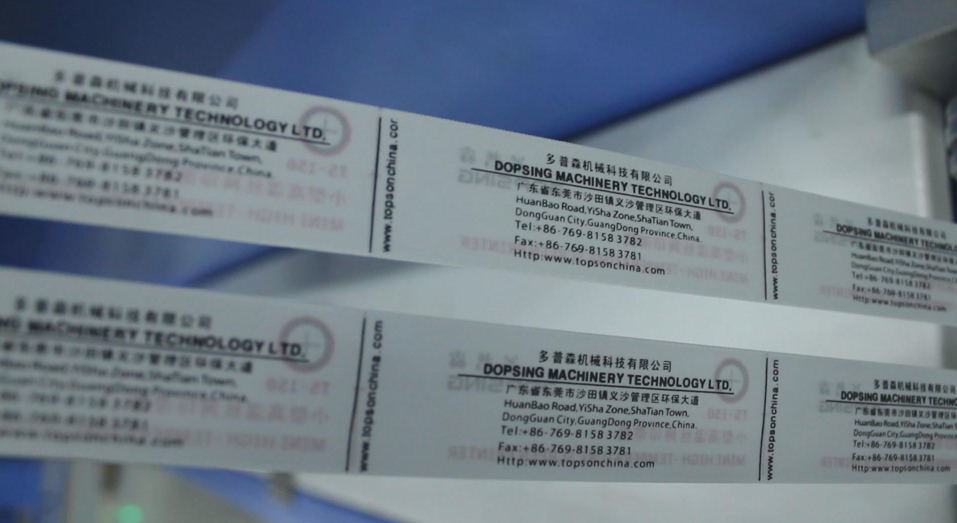

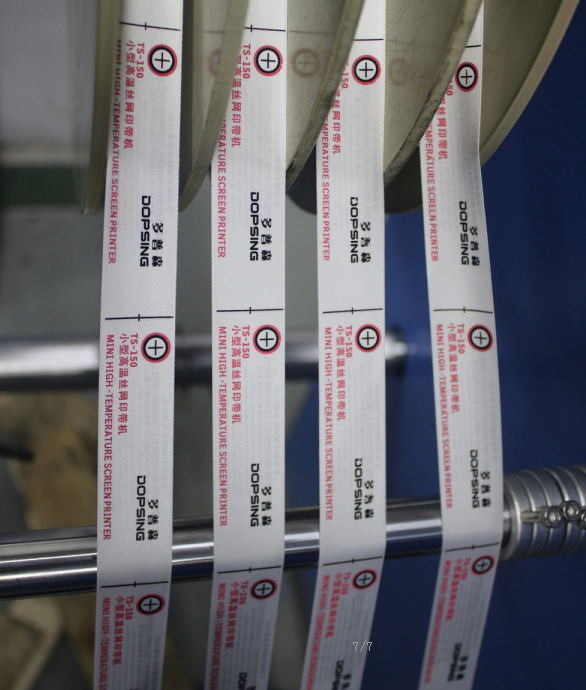

it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

Our Services
Dopsing automatic screen printing machines widely used,recogonized with long term cooperated with many the world biggest and famous narrow fabric manufacturers are using our screen printing machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.

Company Information
DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into
KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

Packaging & Shipping
Covered by plastic membrane within full container or less container
