Factory Outlets Curved Surface Screen Printing Machine - 6 Heads Label Ribbons Automatic Wrapping Machine for Packing – Kin Wah Detail:

Basic Info

Model NO.: KW-820-100R

Structure: Cantilevered Winding Machine

Series: Y Series Cylinder Type Axial Winding Machine

Power: 3.0kw

Phase: 3 Phases

Frequency: 50/60Hz

Max Winding Speed: 80 M/Min

Max Winding Diameter: 400mm

Weight: 230kg

Winding Length: 10-1000m/Roll

Material′s Width: 10-100mm

Material′s Thickness: 0.1-1.0mm

Rolling Core(Inner φ): 10-60mm

Trademark: KINWAH

Transport Package: Full Container or Less Container with Plastic Film

Specification: 2450*1000*1800mm

Origin: China

HS Code: 84515000

Product Description

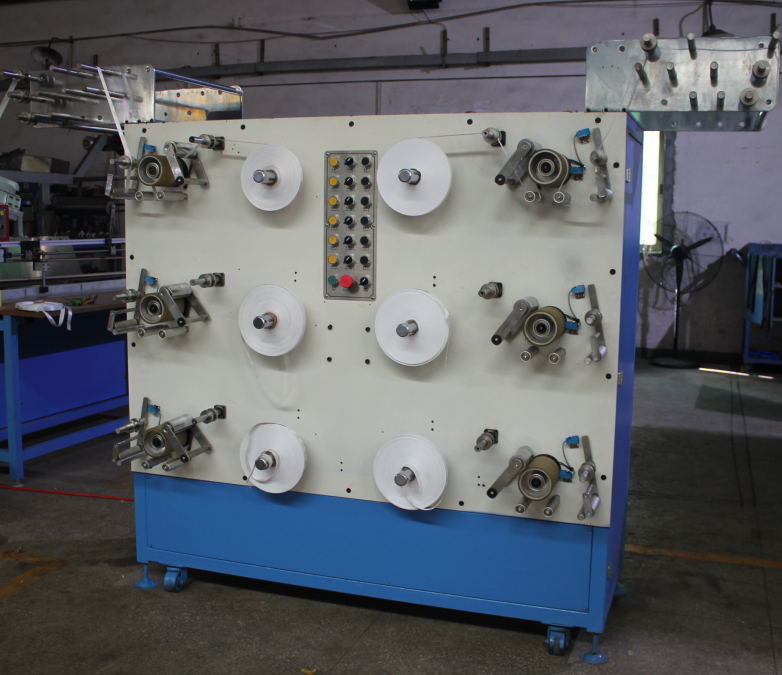

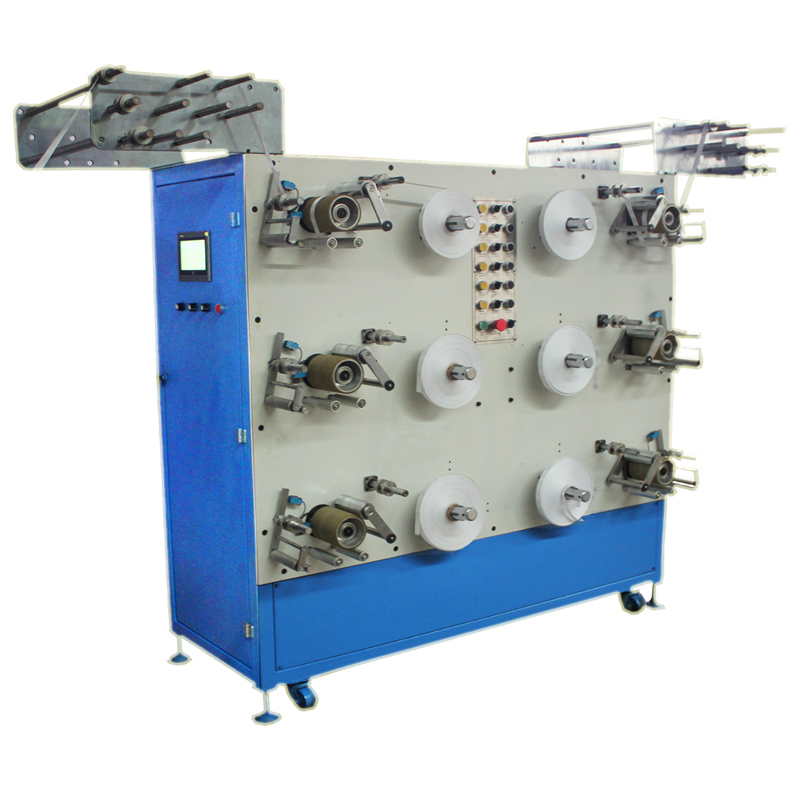

6 Heads label ribbons Automatic Wrapping Machine for Packing

Product Description

KW-820-100R , It’s a kind of winding machinery for all kinds of Narrow Fabric,Labels,satin ribbons,silk ribbons,roll to roll materials/webbings within 100mm width.

Auto PLC Control system

Dual Sides feed in system

Precisely winding accordingly

Widely used for winding any Narrow Fabric

Webbing’s winding speed/Frequency will be different according to its own diameter increase

Come into Global market since the year of 2013.

A,Description of Item: 6 Reels Rolling Machine

B,Model: KW-820-100R

C,Features & Functions

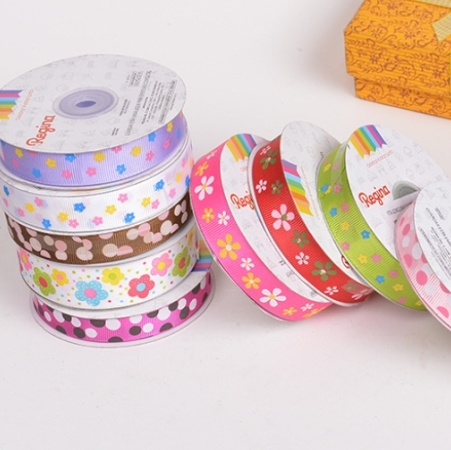

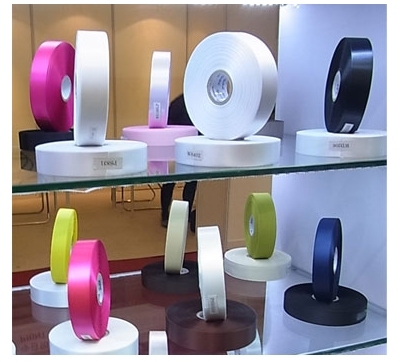

1)Application material: Winding any kinds of Narrow Fabric,Labels,satin ribbons,silk ribbons,roll to roll materials/webbings within 100mm width

2)Precisely winding any roll to roll material with width<100mm.

3)convey: powered by full auto Electrical Motor

4)One operator need only

5)6-12 Axes can be assembled freely for purpose of different orders.

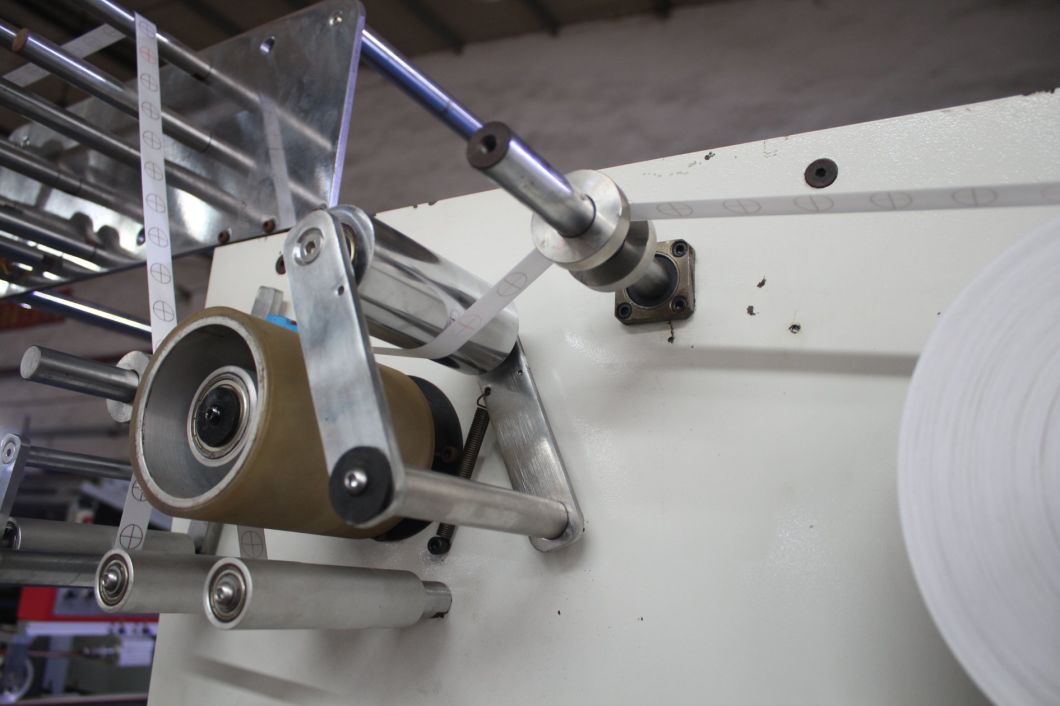

6)Anti-slip device make the webbings passed precisely through sensor before winding.

7)freely set up the required length for packing.

8)controlled by both computer and manual.

D,Technical Specification:

1)Max Winding Diameter: 400mm
2)Winding Length: 10-1000m/roll
3)Material’s width: 10-100mm
4)Material’s thickness:0.1-1.0mm
5)MAX. Speed /H.:80m/min/reel
6)Rolling core(inner Φ):10-60mm
7)Max. Power:3.0Kw/380V/3P/50-60HZ
8)Machine Size: 2450*1000*1800mm
9)Weight:230kg

Our Services

KINWAH Packing machines are widely used,recogonized with long term cooperated with many partners,the world biggest and famous narrow fabric manufacturers are using our machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.

Company Information

DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

Packaging & Shipping

Covered by plastic membrane within full container or less container (woodencase)

6 Heads Label Ribbons Automatic Wrapping Machine for Packing

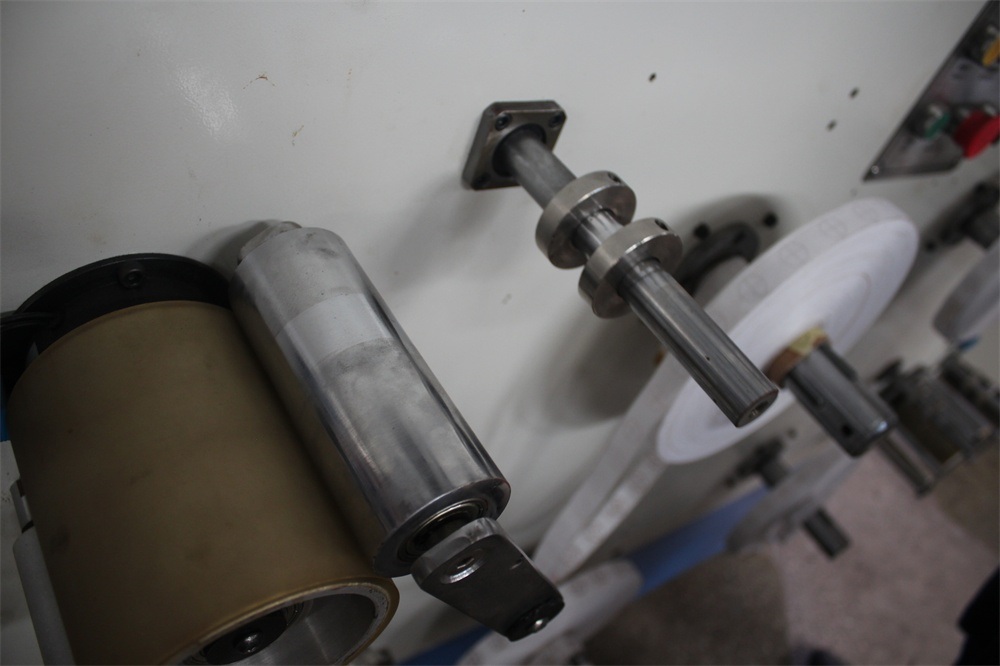

Product detail pictures:
