High Speed Nylon Tapes Continuous Dyeing&Finishing Machine with CE

Short Description:

Basic Info Model NO.: KW-806-SJ400-A Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Power(W): 32kw P...

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.: KW-806-SJ400-A

Warranty: 1 Year

Customized: Customized

Condition: New

Machine Type: Dyeing&Finishing Machine

Power(W): 32kw

Phase: 3 Phases

Frequency: 50/60Hz

Max Working Temperature: 100°c

Driven Type: Electric

Heating System: Electrical&LPG or Natural Gas&Steam

Max Speed: 30m/Min

Drying Type: Hot Air Drying

Application: Elastic Tapes, Nylon Tapes etc

Trademark: KINWAH

Transport Package: Full Container or Less Container with Membrane

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 894560000

Product Description

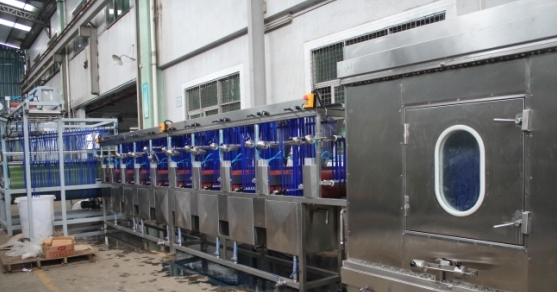

High Speed Nylon Tapes Continuous Dyeing&Finishing Machine with CE

Item No:KW-806-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine

Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it’s the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.

Item
Heat System	electrical	steam
Working Width(mm)	200	400	600
Thermofixation Chamber Tape Content(m)	45/60	80/90
Maximun Speed(m)	15	20	30
Maximun Number(m)	4	8	12
Control system	Manual/PLC

Option: J-Box Feed in device with individual tapes tension control

Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

High Speed Nylon Tapes Continuous Dyeing&Finishing Machine with CE
