    Hot New Products Spandex Elastic Tapes Automatic Silicone Coating Machine - Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C) – Kin Wah

    Short Description:

    Basic Info Model NO.: SPE-3000S-5C System supported: PLC Driven Type: Electric Printing Area: 300mm*600mm Max Speed: 16m/Min /Line Registration Precision: 0.05mm ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We generally continually give you quite possibly the most conscientious shopper company, and the widest variety of designs and styles with finest materials. These endeavours include the availability of customized designs with speed and dispatch for 8 Cylinders Ribbons Starching And Finishing Machine , Nylon Ribbons Screen Printing Machine , Shoulder Tapes Silicone Coating Machine , We will do our best to meet or exceed customers' requirements with quality products, advanced concept, and efficient and timely service. We welcome all customers.
    Hot New Products Spandex Elastic Tapes Automatic Silicone Coating Machine - Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C) – Kin Wah Detail:

    Basic Info

    Model NO.: SPE-3000S-5C
    System supported: PLC
    Driven Type: Electric
    Printing Area: 300mm*600mm
    Max Speed: 16m/Min /Line
    Registration Precision: 0.05mm
    Voltage: 220vc-440
    Power: 12-40kw
    Condition: New
    Certification: Ce,SGS
    After-Sales Service Provided: Engineers Available to Service Machinery Overseas
    Application: Roll to Roll Materials,Narrow Fabric
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China
    HS Code: 8443192290

    Product Description

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

    It can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.
    Model: SPE-3000S-5C
    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c,4c,5c
    2)Over printing for more colors, it can print 4C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.
    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.
    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.

    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train your staffs until they master the machine. All of this is free.


    Total Colors Max Printing Area Registration Precision Printing Speed Max.Power Dimension

    2 C 300X600mm 0.05mm 10m/min 16KW/380V/70A 9500X1000X1300mm

    3 C 300X600mm 0.05mm 10m/min 21KW/380V/80A 12500X1000X1300mm

    4 C 300X600mm 0.05mm 10m/min 25KW/380V/100A 15500X1000X1300mm

    5 C 300X600mm 0.05mm 10m/min 32KW/380V/120A 18500X1000X1300mm

    6 C 300X600mm 0.05mm 10m/min 40KW/380V/150A 21500X1000X1300mm


    It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.

    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

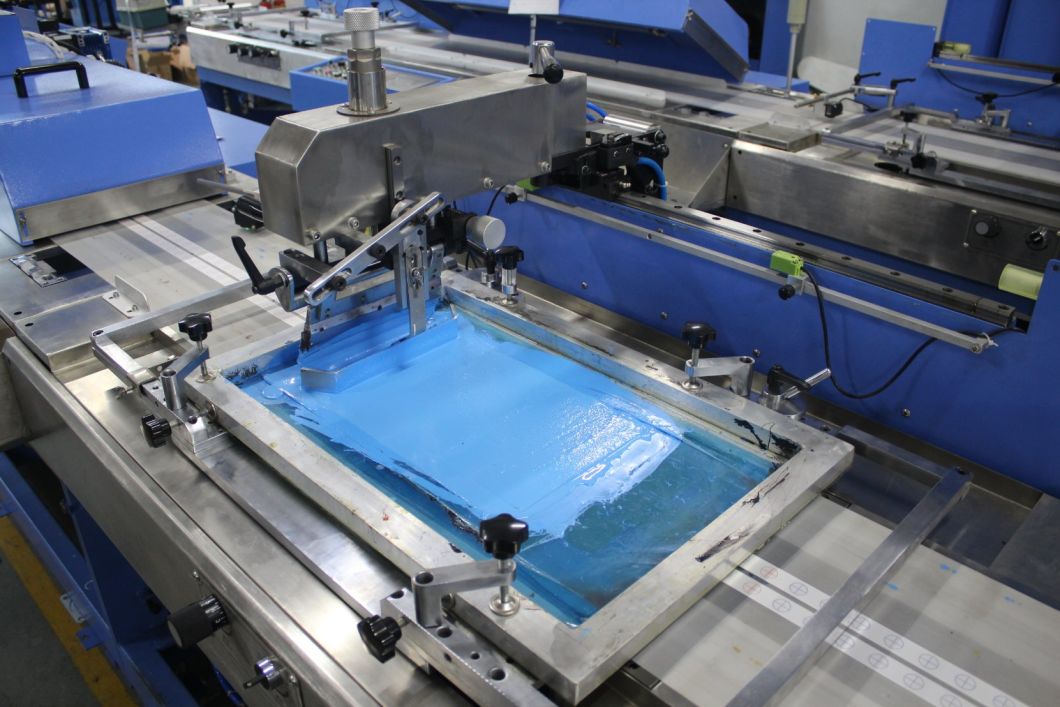

     Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

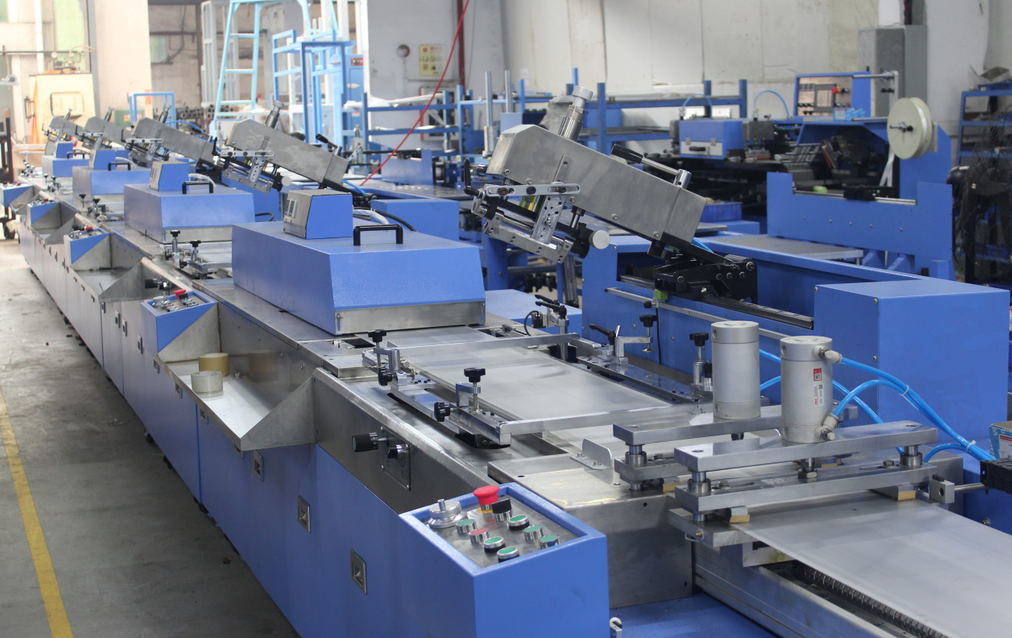

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

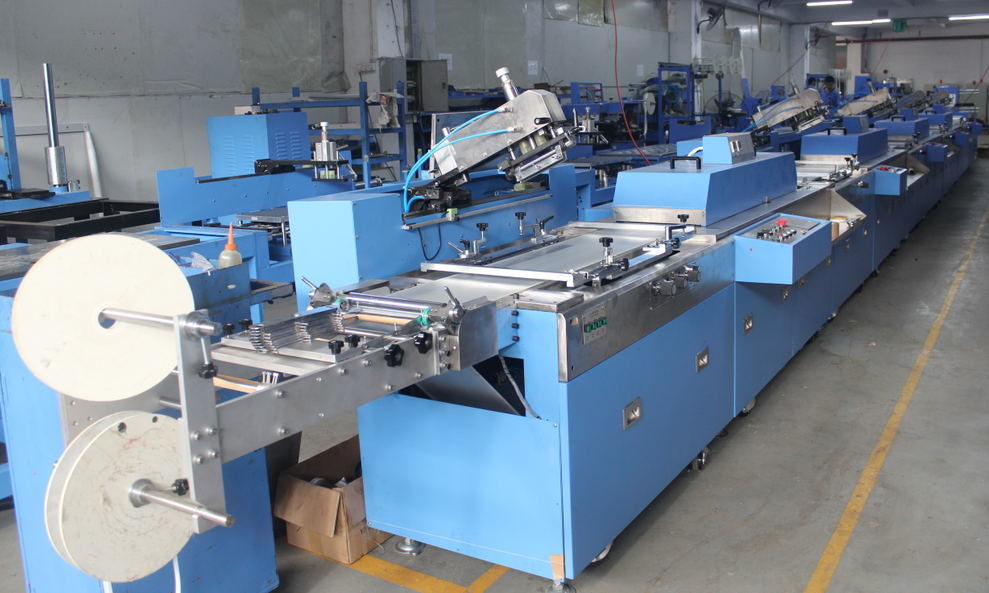

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

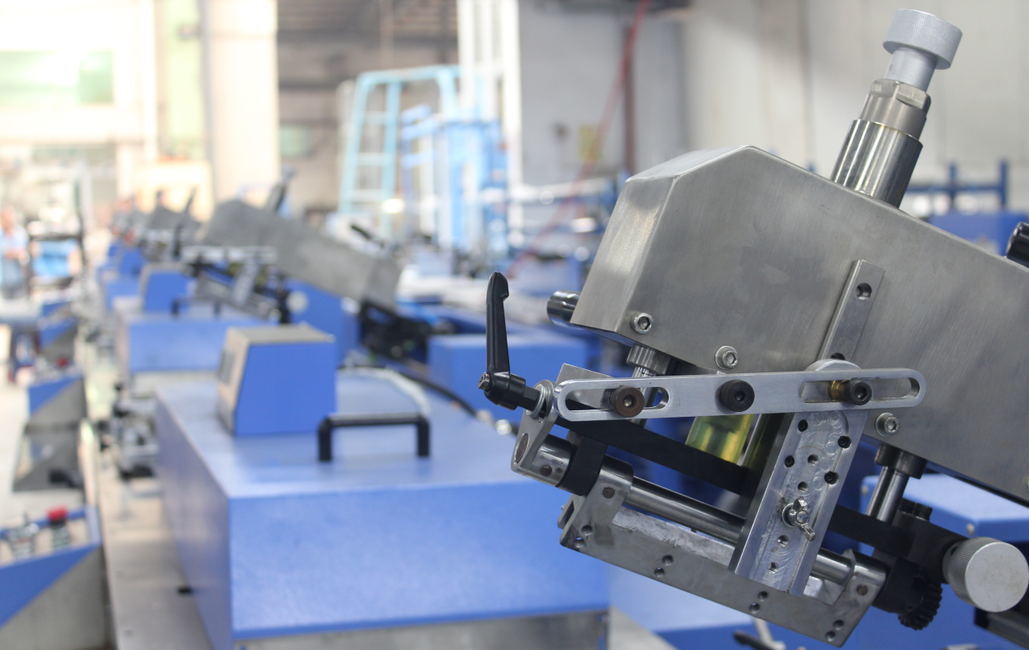

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

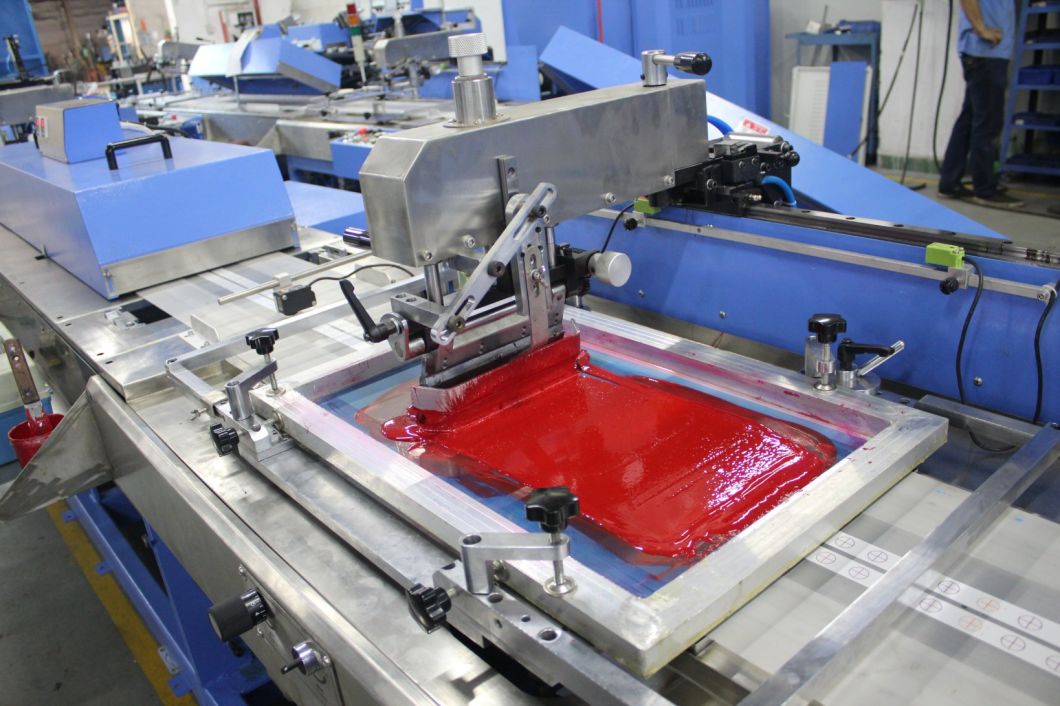

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)

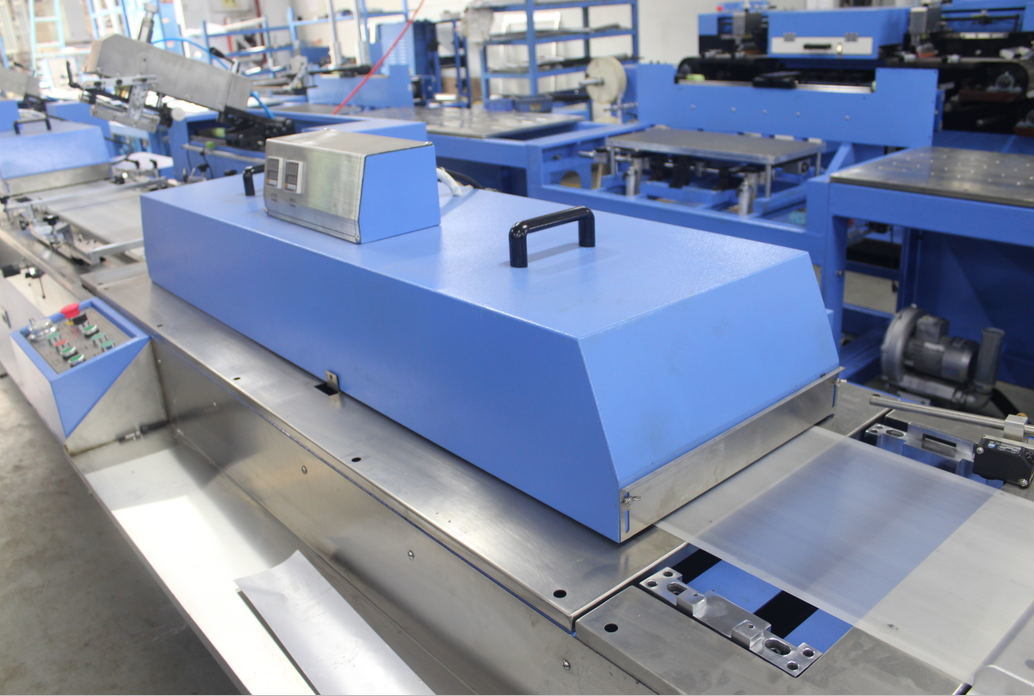

    Cotton Tapes Automatic Screen Printing Machine (SPE-3000S-5C)
