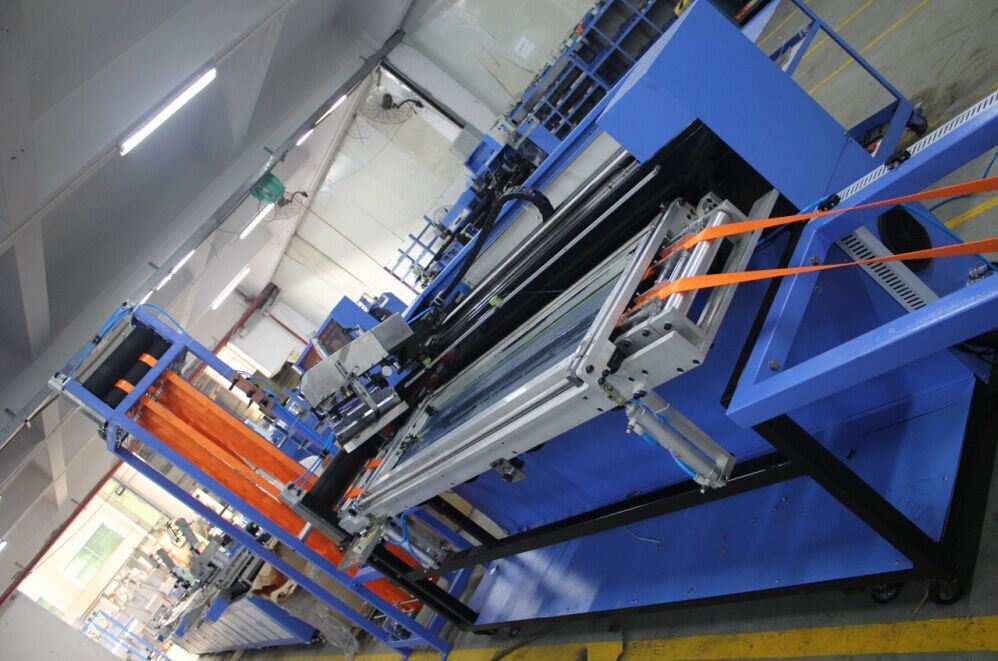

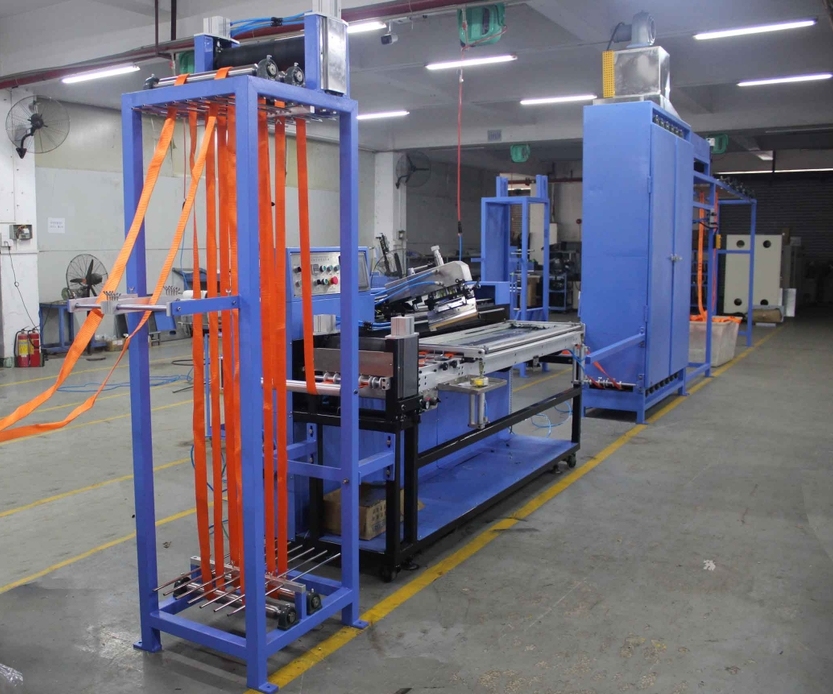

Lashing Straps Screen Printing Machine

Lashing Straps Screen Printing Machine


Product Description

Automatic Silk  Printing Machine for Textile Sling Webbing / Lashing Strap / Tie-down Strap /Cargo Sling etc

1)Application materials: this machine is widely used for  seatbelt webbings, tie down straps,lifting slings, cargo slings, lashing straps, polypropylene webbing, polymaid webbing , textile sling webbings, luggage and suitacase webbings and so on.

2) Printing size: 30CM*1.2M

3)convey: powered by full auto servo Motor .Not by air pressure.

4)One operator need only

5) Material pulling system drived by anti-wind system

6)free set up the printing  and carry times

7)Most parts are made in Europe,Japan

8)controlled by both computer and manual.

D,machine configuration:

1) Feed in :1set

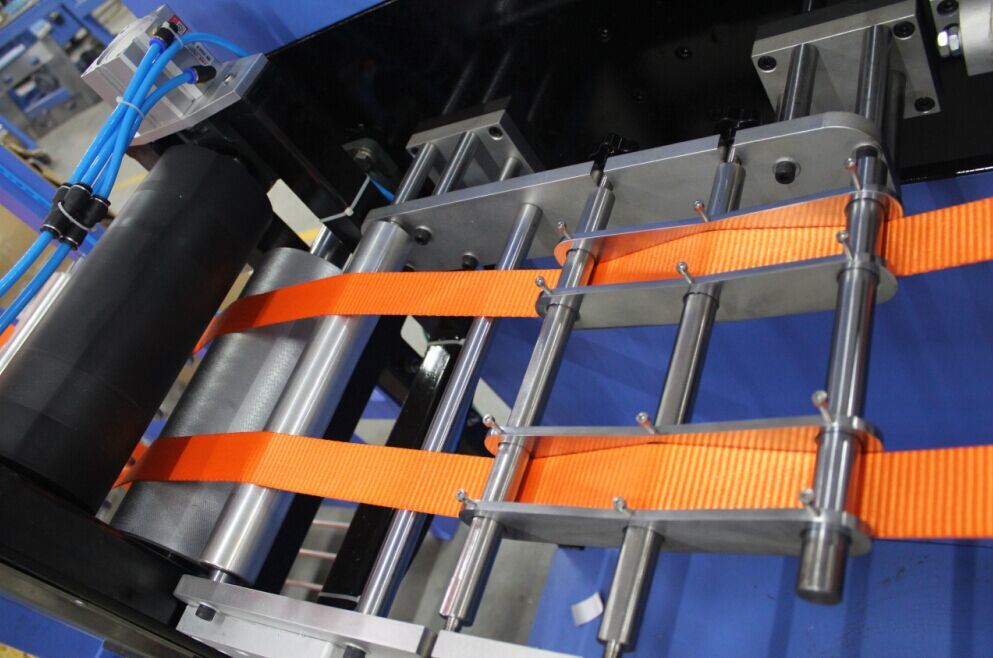

2) webbings rollers guiding device:1set

3) printer:1set

4)Dryer system: 1set

1)tape content : 20meters inside

2)Heating system: electrical

3)with adjustable temperature control system

4)Laid out air blower for webbings drying .

5) take off device:1set with 3 groups of take off wheels for 6 webbings take off purpose

E. Technical specification:

1)Colore:1C

2)Max. Printing Area:26CM*120CM

3)Printing linest: 1-6LINES/ TIME

4)MAX. Speed /H.:10M/Line/Minute

5)Max. Power:20KW/380V/3P/50 Hz

Remark:1) Inverter:MISTUSBISH

       2)PLC: MISTUSBISH or AB(America)
