    Ordinary Discount Automatic Vacuum Exposure Machine - High&Normal Harness Webbings Continuous Dyeing&Finishing Machine – Kin Wah Detail:

    Basic Info

    Model NO.: KW-820-DZ400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Brand Name: Kin Wah
    Machine Type: Dyeing&Finishing Machine
    Power: 32kw
    Phase: 3 Phases
    Driven Type: Electric
    Frequency: 50/60Hz
    Max Speed: 20-40m/Min
    Heating System: Electrical&Steam Heating
    Drying Type: Hot Air/Gas/LPG
    Packaging Material: Woodencase or Plastic Membrane
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Plastic Film
    Specification: CE certification
    Origin: China
    HS Code: 8443192290

    Product Description

    High&Normal Harness Webbings Continuous Dyeing&Finishing MachineItem No: KW-820-DZ400
    Size:    28000*1000*4000mm
    This is high speed horizontal sling webbings/tie down straps/lash straps continuous dyeing&finishing machine

    Application: The dyeing machine is especially used for dyeing Textile Lift slings,tie down straps,lash straps,Heavy duty belts with elongation.
    With washing tanks for good color fasteness

    Product capacity: 2 Pcs/time, 0-12meter/min/Pcs
    Can dye both 350mm width sling webbings,heavy duty webbings,tie down straps,lash straps,etc.
    With strong elongation function.
    For 300mm width webbings:1 meter go into dyeing machine,1.02meter come out after dyed.
    For 50mm width webbings:1 meter go into dyeing machine,1.06meter come out after dyed.

    Heat System       electrical/LPG or natural gas
    Working Width(mm)        400
    Thermofixation Chamber Tape Content(m) 60
    Maximun Speed(m/min)   20-40
    Maximun Number(m)   8
    Remark: laid out elongation function,Control system  Computer control

    Processes: Feed in-dyeing groove-Infrared pre drying-hold mangle-High Temp Steam chamber(Normal Temp Steam Chamber)thermofixation-pull mangle-washing tank-hold mangle-drying Chamber-cooling system-pull mangle-take off
    Package:Covered by plastic membrane within full container or less container (woodencase)

    Customers:

    lifting slings/webbing slings/lash strap/tie down strap: JULI Group, Murtra, Protekt, Astro, Hedef Halat, Ekas, Tsiros and Ferreterro, Dahua, Lijia, LiQiang,
    Automobile Seatbelt Webbing:AUTOLIV GROUP,Oppermann, FEIMA, GuangDa
    Label Ribbon:Kings, ITL, LEADERS, XINLI, WUXING,YOU FU, SHUANGLIN

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine
    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine
    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine
    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine
    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine

    High&Normal Harness Webbings Continuous Dyeing&Finishing Machine

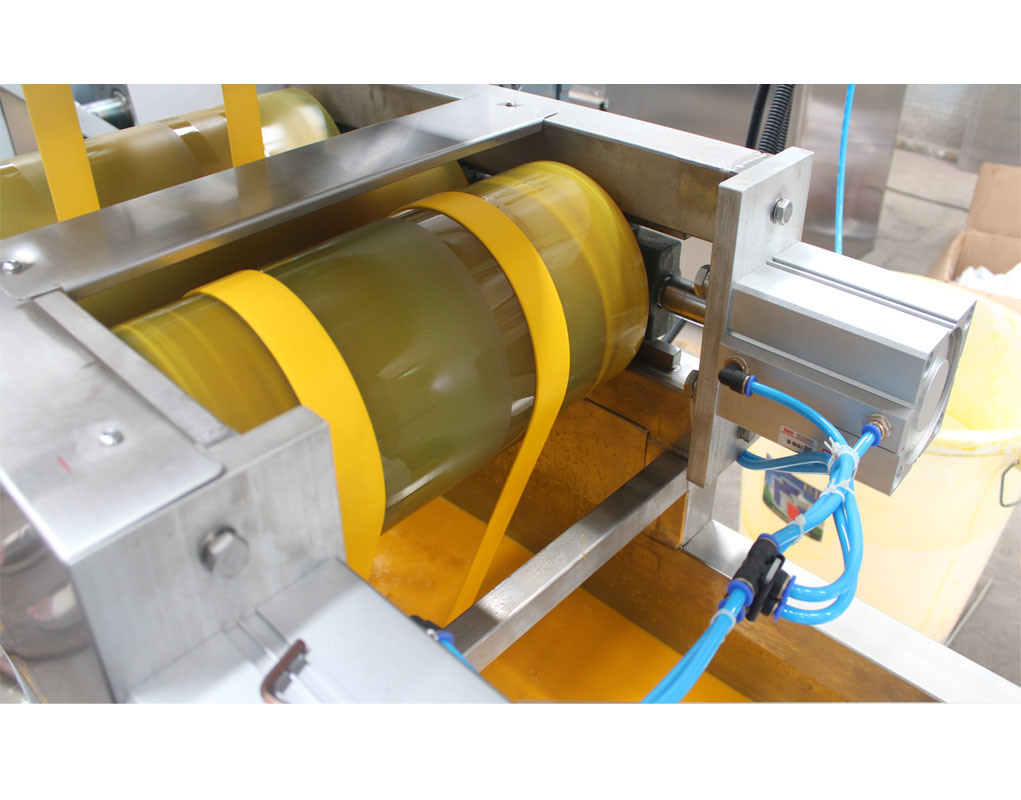

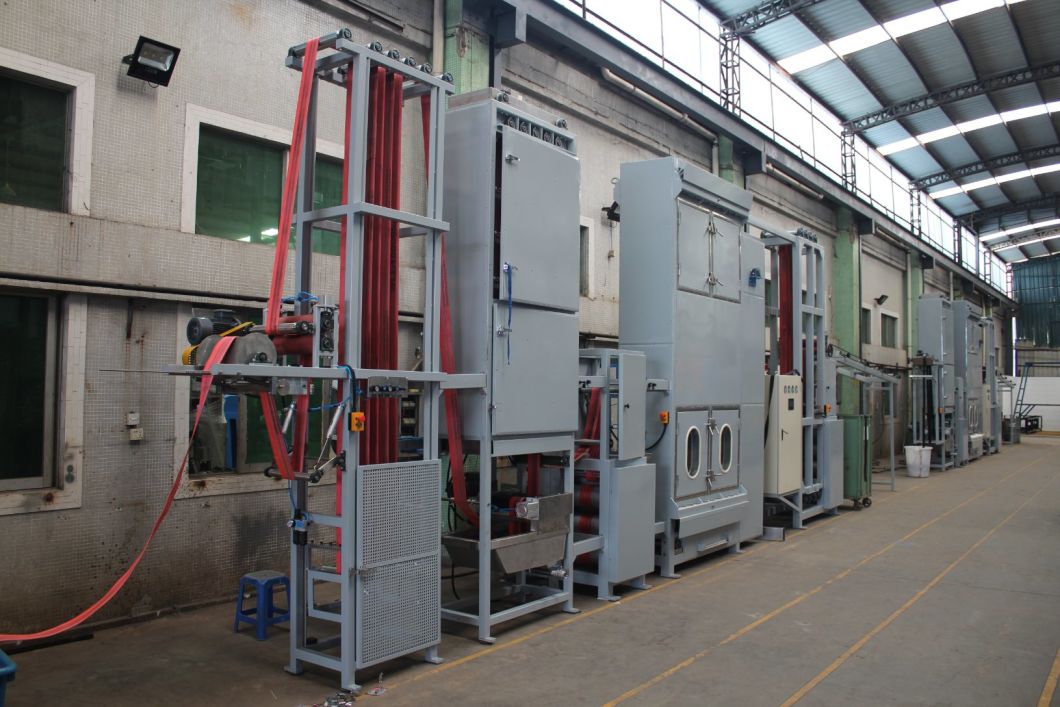

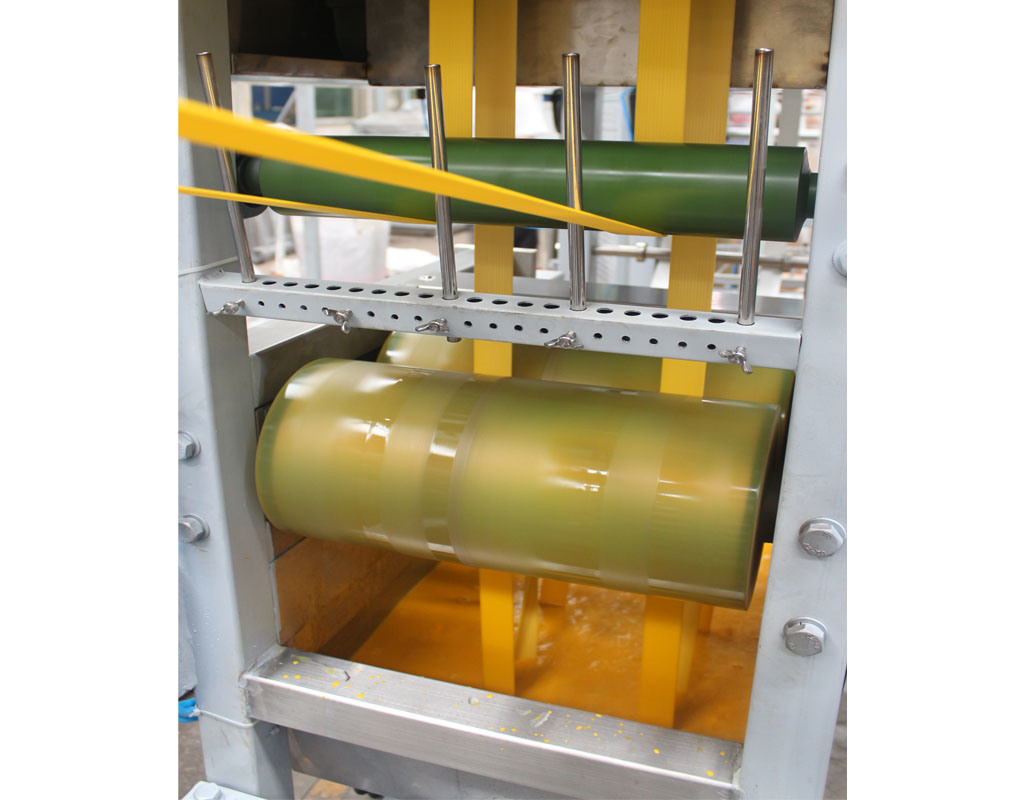

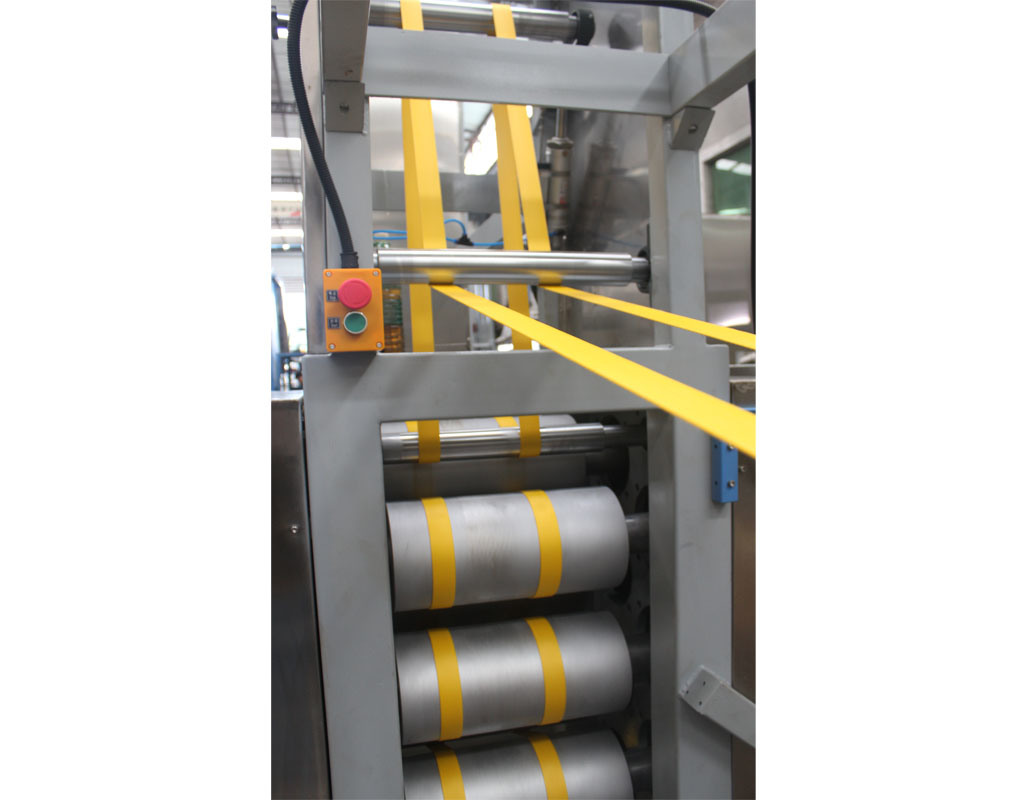

    Product detail pictures:
