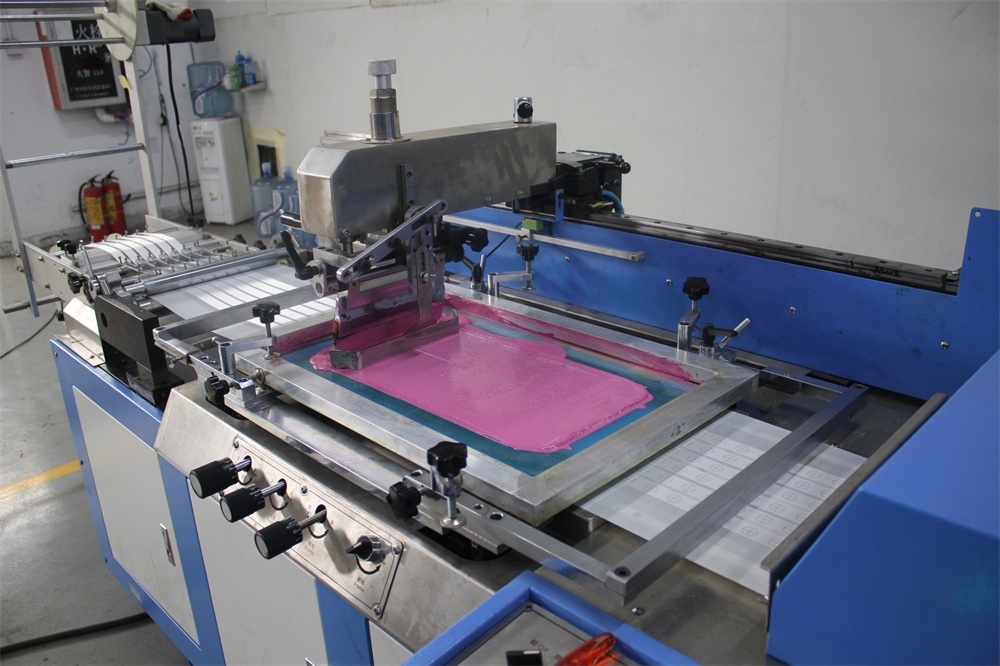

Screen Printing Machine for Narrow Fabric/Label Ribbon

screen printing machine for narrow fabric/label ribbon

Product Description
DS-301, It’s a kind of big production all kinds of narrow fabric such as labels, ribbons, elastic tapes ,PET film, laces,lanyards,cotton tape, elastic tape, webbing sling, small slice and so on all kinds of roll to roll material single colore Automatic screen printing machine (It’s our patents)
Servo system
Two long dryer for big production
big printing area
long convey belt to avoid frequancy glue coating.
dryers laid after printer is more convenient for production and mchine operation and ribbons connection and so on.
frame can be lift up for frame clean purpose.
can print elastic tapes after installation of elastic tapes attachment.
Come into Global market since the year of 2012.

A,Description of Item: Automatic single colore screen printing machine
B,Model: DS-300-A
C,Features & Function
1)Application material: print any kinds of roll to roll narrow fabric, such as label ribbons, satin ribbons, cotton tapes and so on.
2)Precisely Print any roll to roll material with width<30CM.
3)convey: powered by full auto servo Motor .Not by air pressure.
4)One operator need only
5)Frame can be automatic lift up for purpose of easy cleaning the screen. Don’t need to take out frame from machine.
5)Anti-wind device make the ribbon pulled into dryer after printing.
6)free set up the printing times and the carry times on electronic Dryer lift while stop
7)Most parts are made in Europe,Japan
8)controlled by both computer and manual.
9)Laid out 2 long dryers 1(meter +1.4meter) for bigger production.
10)controlled by both computer and manual operation.
11)laid out take off device for ribbons automatic winding into rolls.
D,Technical Specification:
1)Colore:1C
2)Max. Printing Area:28CM*65CM
3)Printing linest: 3LINES/3.5CM
4)MAX. Speed /H.:600M/Line
5)Max. Power:14KW/380V/3P/50-60HZ
6Machine Size:680CM*100CM*130CM


Our Services
Dopsing automatic screen printing machines widely used,recogonized with
long term cooperated with many the world biggest and famous narrow
fabric manufacturers are using our screen printing machines,such as
PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes
manufacturer STRETCHLINE and so on.



Company Information

Dopsing Machinery Enterprise is subsidiary to KINWAH GROUP which emerged
into the Asia biggest narrow fabric continuous dyeing and finishing
machines manufacturer DONGGUAN CITY KINWAH MACHINERY CO.,LTD in 2011.

Dopsing has specialized in developping &researching, manufacturing
narrow fabric screen printing machines more than 10 years, The FIRST SET
FULL AUTOMATIC electronic screen printing machine for narrow fabric IN
CHINA was born in Dopsing(former name is LEADTECH which is belong to
LEADER GROUP COMPANY In HK ).

it has gained over than 10 patents from generation 1 to generation 3 of
computerized screen printing machine. it enjoyed the world advanced
technology in auto screen printing machines field.


Packaging & Shipping
Covered by plastic membrane within full container or less container
(woodencase)
