    Super Purchasing for Semi-automatic Silk Screen Printing Machine - High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah

    Short Description:

    Basic Info Model NO.: TS-150 System supported: PLC Main Part Material: Stainless Steel Driven Type: Electric Gross Power: 6-11kw Phase: 3 Phases Frequen...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    Our target is always to satisfy our customers by offering golden support, superior value and high quality for Tapes Silicone Coating Machine , Lash Webbings Cutting Machine , Cargo Lifting Webbings Dyeing And Finishing Machine , In our efforts, we already have many shops in China and our products have won praise from customers worldwide. Welcome new and old customers to contact us for the future long term business relationships.
    Super Purchasing for Semi-automatic Silk Screen Printing Machine - High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah Detail:

    Basic Info

    Model NO.: TS-150
    System supported: PLC
    Main Part Material: Stainless Steel
    Driven Type: Electric
    Gross Power: 6-11kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Printing Area: 150*300mm
    Printing Linest: 3lines/Time
    Max Speed: 6m/Min/Line
    Registration Precision: 0.05mm
    Printing Side: Single/Double Sides
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China(Mainland)
    HS Code: 8443192290

    Product Description

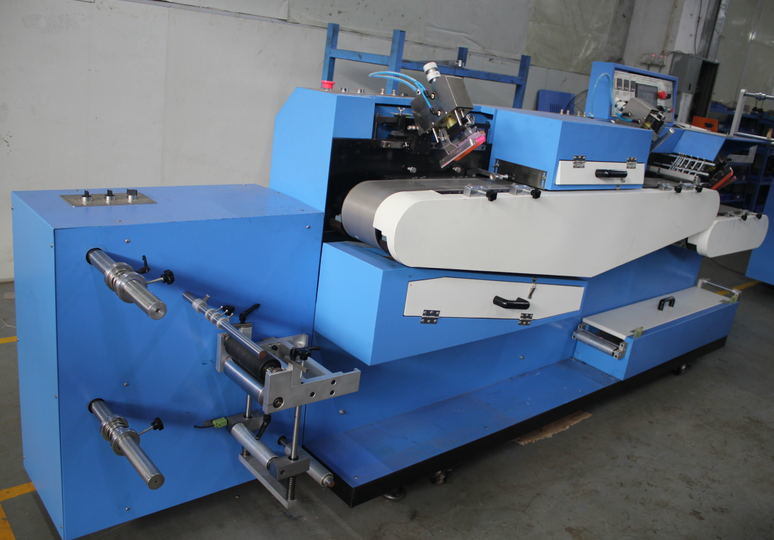

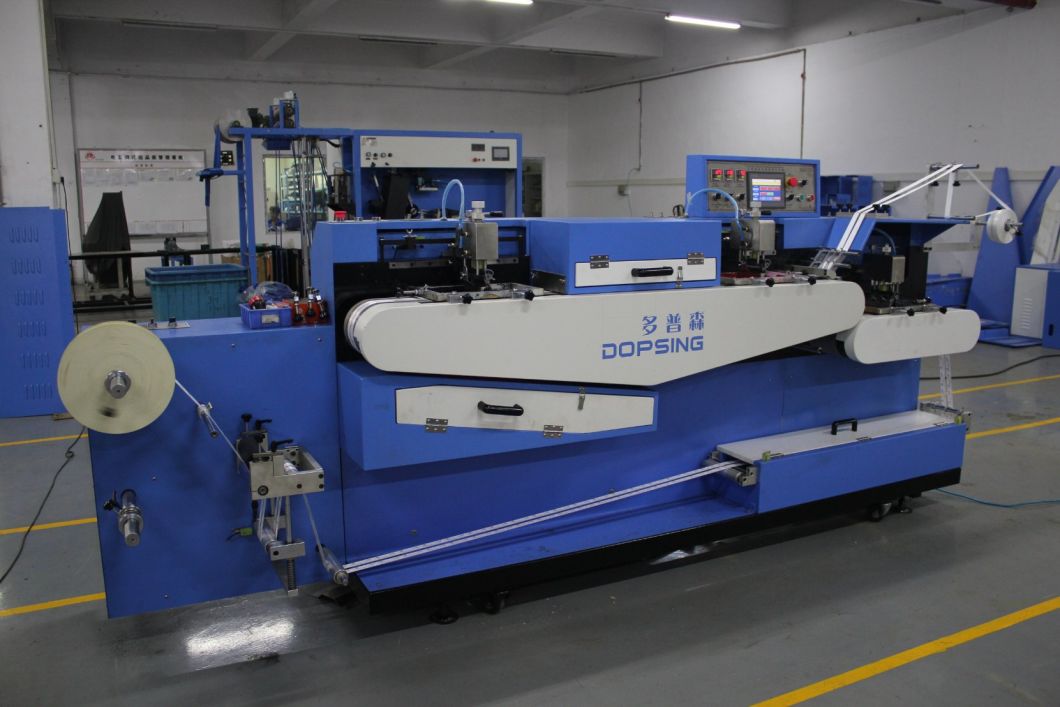

    High Temperature Inks Ribbon-Label Printing Machine (TS-150)

    Steel belt + Servo system
    Multi-colore print 1C-5C
    single side or doulbe side printing
    came into the global market in 2010

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.
    It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.

    Total Colors Model Single/Both Sides Printing Lines Max Printing Area Dimension

    2 C 1+1 Both 3Lines/3.5cm 150X300mm 2200X850X1600mm
    2+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    3 C 2+1 Both 3Lines/3.5cm 150X300mm 2700X850X1600mm
    3+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    4 C 3+1 Both 3Lines/3.5cm 150X300mm 3850X850X1600mm
    4+0 Single 3Lines/3.5cm 150X300mm 4760X850X1600mm


    Precisely printing

    hight temperature ink printing
    print any kinds of high temperature ink,such as plastisol,silicon,pomp ink

    double side printing
    precisely print multi-colores design,and multi-lines feeding.
    operators
    one operator need only
    working situation
    a workspace with 3 to 4 Square meters. you can move easily

    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into
    KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Our Services
    Dopsing automatic screen printing machines are widely used,recogonized
    with long term cooperated with many partners.the world biggest and
    famous narrow fabric manufacturers are using our screen printing
    machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
    Elastic tapes manufacturer STRETCHLINE and so on.

    Company Information
    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

    Packaging & Shipping
    Covered by plastic membrane within full container or less container
    (woodencase)

    High Temperature Inks Ribbon-Label Printing Machine (TS-150)
    High Temperature Inks Ribbon-Label Printing Machine (TS-150)
    High Temperature Inks Ribbon-Label Printing Machine (TS-150)
    High Temperature Inks Ribbon-Label Printing Machine (TS-150)
    High Temperature Inks Ribbon-Label Printing Machine (TS-150)
    High Temperature Inks Ribbon-Label Printing Machine (TS-150)




    Product detail pictures:

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures

    Super Purchasing for Semi-automatic Silk Screen Printing Machine -
 High Temperature Inks Ribbon-Label Printing Machine (TS-150) – Kin Wah detail pictures
