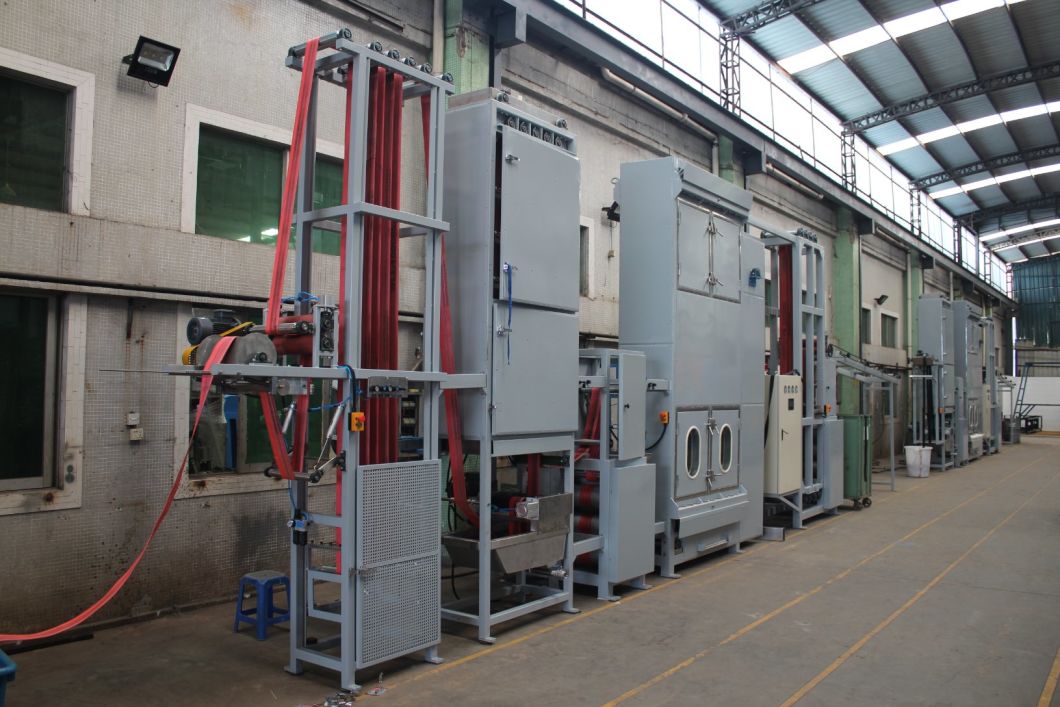

Textile Lifting Sling Webbings Continuous Dyeing&Finishing Machine
Product Description
this is a high speed textile lift sling webbings continuous dyeing machine & finishing machine.
1)Application: The continuous dyeing machine(with PLC) is especially used for dyeing Textiel Lift Slings and Heavy Duty Belts with elongation.

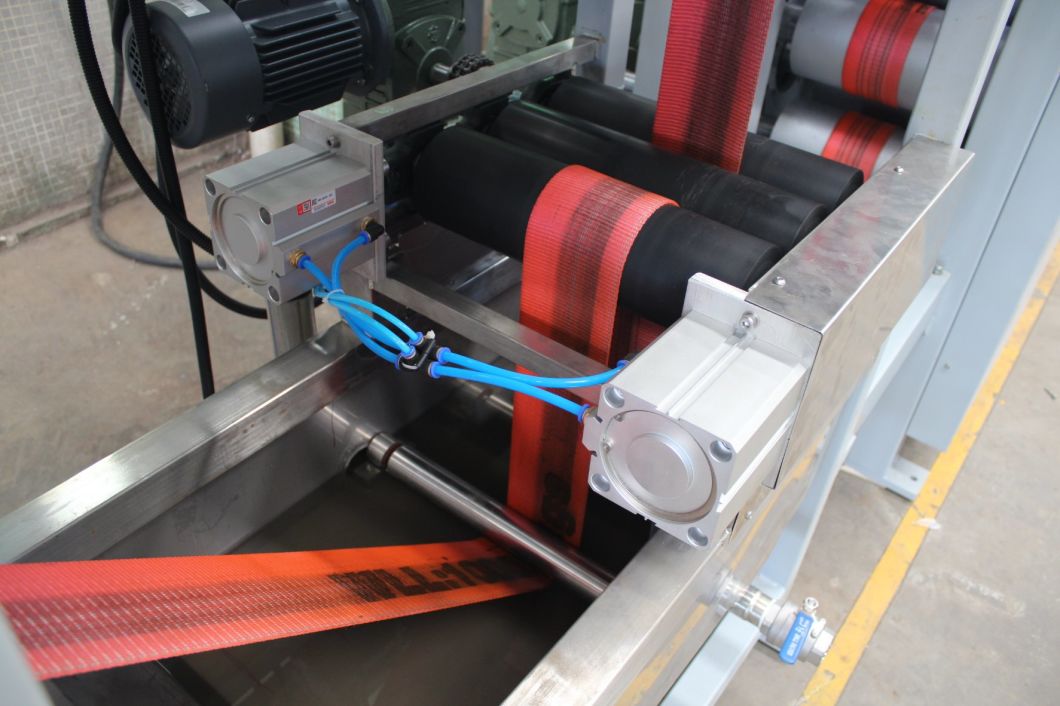

2)Processes: Feed in →dyeing padder→infrared predrying → hold mangle→thermofixation →cool off→pull mangle →take off
3)Production capacity:2 pcs/time,0-25meter/min/pcs.
4)can dye both 350mm width sling webbings,heavy duty webbings, tie down straps, lash straps and so on.
5)with strong elongation function. for 300mm width webbing 1 meter go into dyeing machine, and 1.02meter come out after dyed
for 50mm width webbing 1 meter go into dyeing machine and 1.12meter come out after dyed
Heat System electrical/LPG or natural gas
Working Width(mm) 600
Thermofixation Chamber Tape Content(m) 60
Maximun Speed(m) 20
Maximun Number(m) 8
Control system Computer control
Processes: Feed in-dyeing groove-Infrared pre drying-hold mangle-
thermofixation-cooling system-pull mangle-take off
Company Information
KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
Our Services
Customers:
lifting slings/webbing slings/lash strap/tie down strap: JULI Group, Murtra, Protekt, Astro, Hedef Halat, Ekas, Tsiros and Ferreterro, Dahua, Lijia, LiQiang,
Automobile Seatbelt Webbing:AUTOLIV GROUP,Oppermann, FEIMA, GuangDa
Label Ribbon:Kings, ITL, LEADERS, XINLI, WUXING,YOU FU, SHUANGLIN
Packaging & Shipping
Covered by plastic membrane within full container or less container (woodencase)
