    Wholesale Nylon Bra Tapes Pre-Shrinking Machine - 3 Colors Gift Ribbons Automatic Screen Printing Machine – Kin Wah

    Short Description:

    Basic Info Model NO.: SPE-3000S-2C Machine Type: Screen Printing Machine Main Part Material: Stainless Steel Voltage: 220/380/400V Max. Speed /H: 13m/Line/Min Gross Power: 16-40kw ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We strive for excellence, service the customers", hopes to become the best cooperation team and dominator enterprise for personnel, suppliers and customers, realizes value share and continuous promotion for Webbing Slings Continuous Dyeing Machine , Luggage Webbings Screen Printer , Multicolors Silk Screen Printing Machine , Should you be fascinated in any of our products and services, remember to do not hesitate to make contact with us. We're ready to reply you inside of 24 several hours soon after receipt of one's ask for and also to develop mutual un-limited advantages and organization in around potential.
    Wholesale Nylon Bra Tapes Pre-Shrinking Machine - 3 Colors Gift Ribbons Automatic Screen Printing Machine – Kin Wah Detail:

    Basic Info

    Model NO.: SPE-3000S-2C
    Machine Type: Screen Printing Machine
    Main Part Material: Stainless Steel
    Voltage: 220/380/400V
    Max. Speed /H: 13m/Line/Min
    Gross Power: 16-40kw
    Printing Area: 300mm*600mm
    Dimensions(L*W*H): 6.5m * 1.0m* 1.3m
    Weight: 500kg
    After-Sales Service Provided: Engineers Available to Service Overseas
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

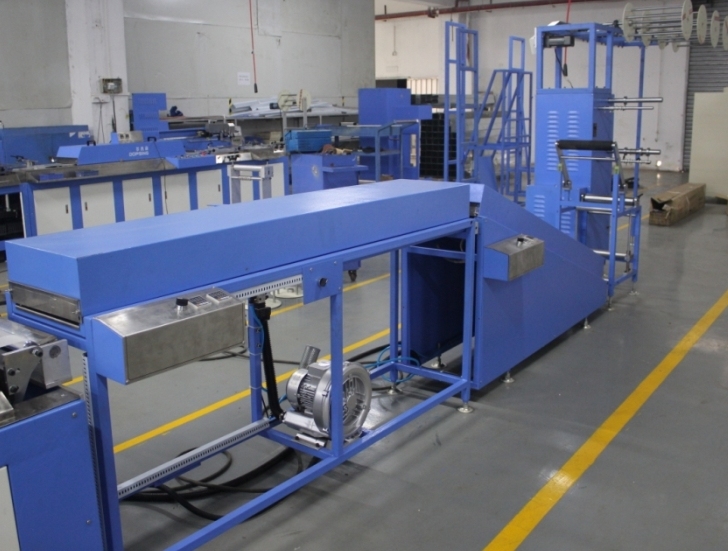

    3 colors gift ribbons automatic screen printing machine

    Product Description

    It’s a kind of big production all kinds of narrow fabric such as labels, ribbons, elastic tapes ,PET film, laces,lanyards,content label,twill tape,cotton tape, elastic tape, webbing sling, small slice and so on all kinds of roll to roll material single colore Automatic screen printing machine (It’s our patents)



    Servo system

    Two long dryer for big production

    big printing area

    long convey belt to avoid frequancy glue coating.

    dryers laid after printer is more convenient for production and mchine operation and ribbons connection and so on.

    frame can be lift up for frame clean purpose.

    can print elastic tapes after installation of elastic tapes attachment.

    Come into Global market since the year of 2012.


    Total Colors Max Printing Area Registration Precision Printing Speed Max.Power Dimension

    2 C 300X600mm 0.05mm 13m/min 16KW/380V/70A 8500X1000X1300mm

    3 C 300X600mm 0.05mm 13m/min 21KW/380V/80A 12500X1000X1300mm

    4 C 300X600mm 0.05mm 13m/min 25KW/380V/100A 15500X1000X1300mm

    5 C 300X600mm 0.05mm 13m/min 32KW/380V/120A 18500X1000X1300mm

    6 C 300X600mm 0.05mm 13m/min 40KW/380V/150A 21500X1000X1300mm




    A,Description of Item: Automatic single colore screen printing machine

    B,Model:  SPE-3000S-2C

    C,Features & Function

    1)Application material: print any kinds of roll to roll narrow fabric, such as label ribbons, satin ribbons, cotton tapes and so on.

    2)Precisely Print any roll to roll material with width<30CM.

    3)convey: powered by full auto servo Motor .Not by air pressure.

    4)One operator need only

    5)Frame can be automatic lift up for purpose of easy cleaning the screen. Don’t need to take out frame from machine.

    5)Anti-wind device make the ribbon pulled into dryer after printing.

    6)free set up the printing times and the carry times on electronic Dryer lift while stop

    7)Most parts are made in Europe,Japan

    8)controlled by both computer and manual.

    9)Laid out 2 long dryers 1(meter +1.4meter) for bigger production.

    10)controlled by both computer and manual operation.

    11)laid out take off device for ribbons automatic winding into rolls.

    D,Technical Specification:

    1)Colore:2C

    2)Max. Printing Area:280mm*580mm

    3)Registration Precision: 0.05mm

    4)MAX. Speed /H.:10m/min/line

    5)Max. Power:16kw/380V/3P/50-60HZ

    6Machine Size:9500mm*1000mm*1300mm


    It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.



    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.



    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.


    3 Colors Gift Ribbons Automatic Screen Printing Machine
    3 Colors Gift Ribbons Automatic Screen Printing Machine
    3 Colors Gift Ribbons Automatic Screen Printing Machine

    3 Colors Gift Ribbons Automatic Screen Printing Machine
    3 Colors Gift Ribbons Automatic Screen Printing Machine
    3 Colors Gift Ribbons Automatic Screen Printing Machine
