Wholesale Price China Glass Bottle Uv Screen Printer - 6 Colors Care Labels/Clothing Labels Screen Printing Machine – Kin Wah Detail:
Basic Info
Product Description
Product Description
DOPSING SPE3000S,
Servo system +Sensor+Screw Rod+Tension Controller
Muti-color print 1C-8C
single side or double side printing
Come into Global market since the year of 2003.
it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.
Total Colors | Max Printing Area | Registration Precision | Printing Speed | Max.Power | Dimension | |
2 C | 300X600mm | 0.05mm | 10m/min | 16KW/380V/70A | 9500X1000X1300mm | |
3 C | 300X600mm | 0.05mm | 10m/min | 21KW/380V/80A | 12500X1000X1300mm | |
4 C | 300X600mm | 0.05mm | 10m/min | 25KW/380V/100A | 15500X1000X1300mm | |
5 C | 300X600mm | 0.05mm | 10m/min | 32KW/380V/120A | 18500X1000X1300mm | |
6 C | 300X600mm | 0.05mm | 10m/min | 40KW/380V/150A | 21500X1000X1300mm | |
Model: SPE-3000S-3C
Precise printing
1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.

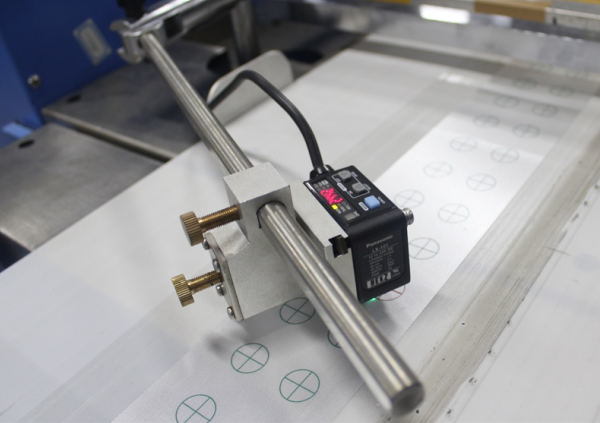

2)Adjusting printing position by Auto Sensors system instead of handcraft.
3)Tension controller and the brake make the conveying exactly
Functions:
1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
2)Over printing for more colors, it can print 5C~8C too
3)Both sides printing several trips at one time
4)slice printing
5)Micro adjusting meter for frame adjusting automatically.
6)Anti-wind device makes the ribbon pulled into dryer after printing.
7)Infrared dryer and heater make the any kinds ink dry enough.
8)Free set up the printing times and the carry times on electronic touch screen.
9)Several sensors tracing the situation of the feeding materials.
10)Dryer lift while the machine stopping
11)Most core parts import from Europe&Japan.
Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
Your staffs until they master the machine. All of this is free.
Our Services
Dopsing automatic screen printing machines are widely used,recogonized
with long term cooperated with many partners.the world biggest and
famous narrow fabric manufacturers are using our screen printing
machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
Elastic tapes manufacturer STRETCHLINE and so on.
Company Information
DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.
2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.
Packaging & Shipping
Covered by plastic membrane within full container or less container

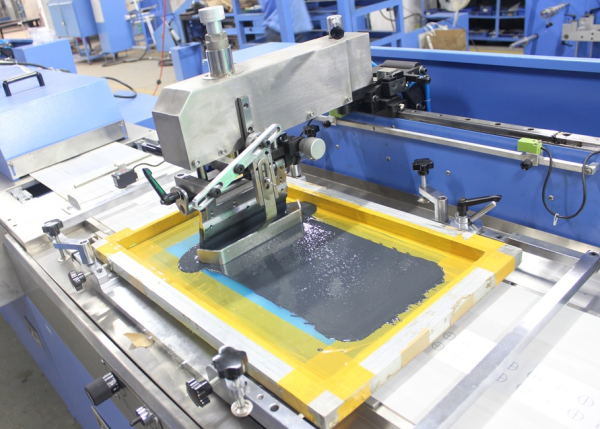

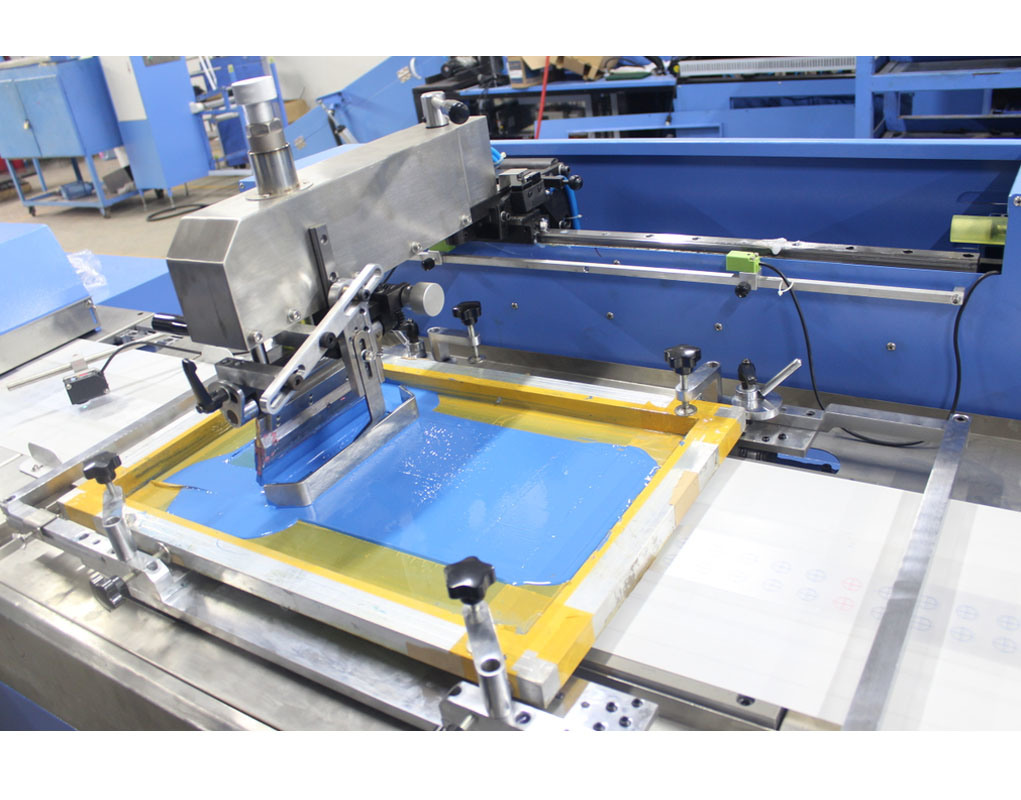

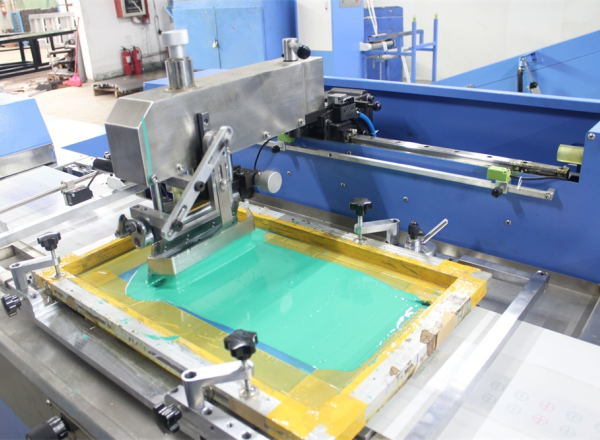

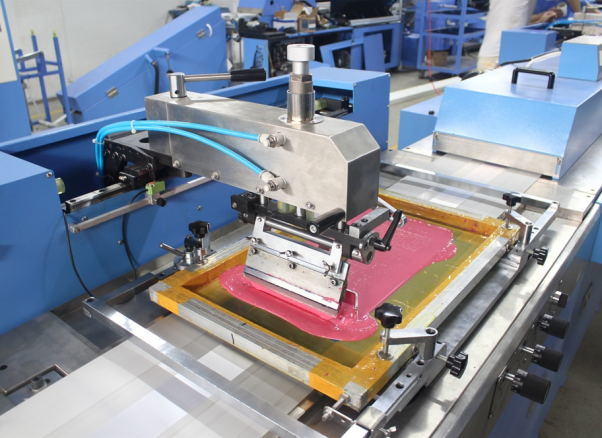

Product detail pictures:
